Close-up view of green Cat.6 network cable with transparent RJ-45 connector showing gold-plated contacts-alternate-image1

Side view of green Cat.6 patch cable showing both RJ-45 connectors with strain relief boots-alternate-image2

Comparison of clear and green snagless boots on Cat.6 cable connectors-alternate-image3

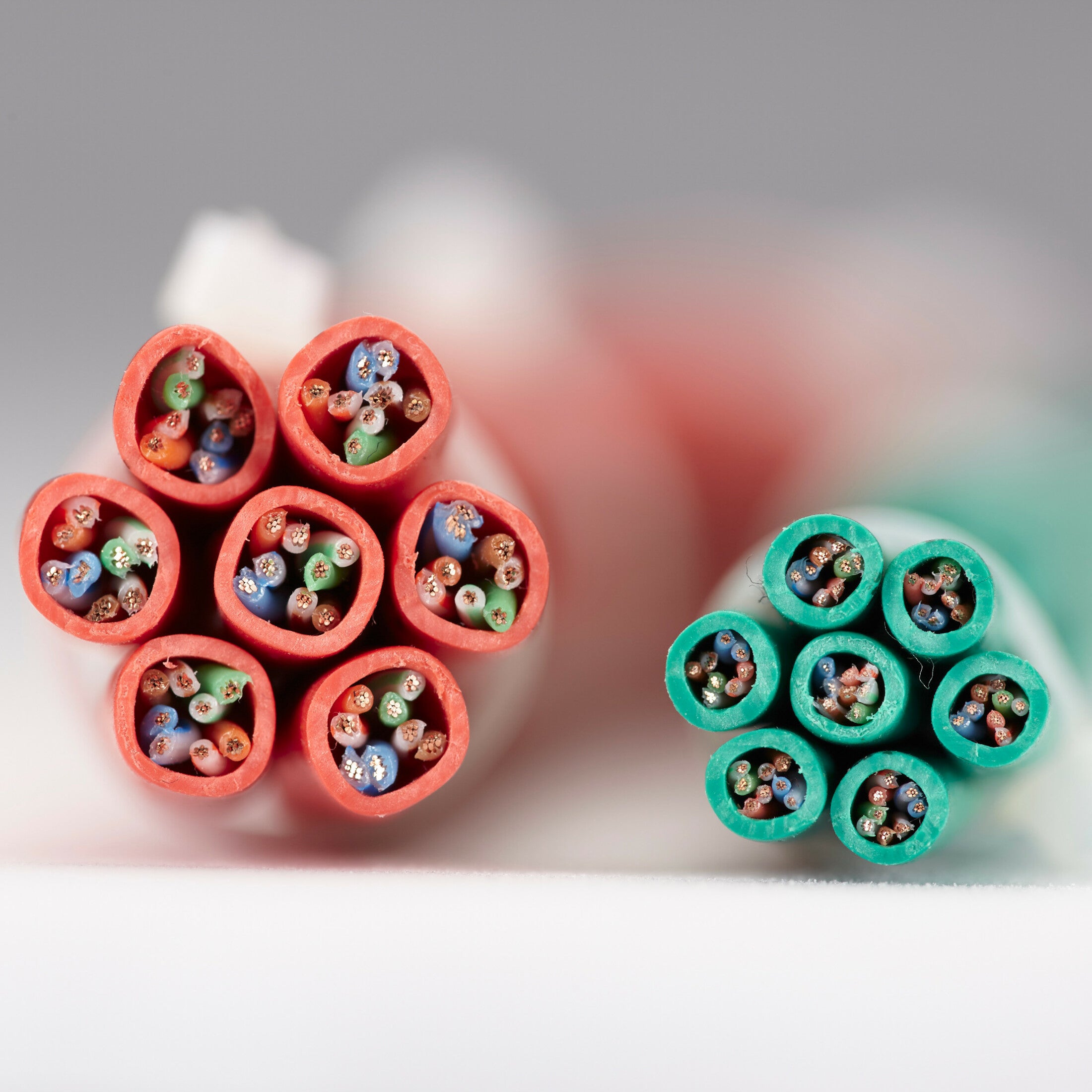

Cross-sectional view of Cat.6 cable internal wiring structure showing twisted pairs-alternate-image4

Black Box

C6PC28-GN-12

ⓘ

AUTHORIZED
PARTNER

$29.99

Black Box Slim-Net Cat.6 UTP Network Patch Cable, 28 AWG, 10 Gbit/s, Snagless Boot, Gold-Plated Connectors, Space-Saving Design, Green, 12 ft - C6PC28-GN-12 (Lifetime Warranty)

Name: Black Box Slim-Net Cat.6 UTP Network Patch Cable, 28 AWG, 10 Gbit/s, Snagless Boot, Gold-Plated Connectors, Space-Saving Design, Green, 12 ft - C6PC28-GN-12 (Lifetime Warranty)
Brand: Black Box
SKU: C6PC28-GN-12
Price: 29.99 USD
Availability: InStock

Brand New

FREE Returns

Product variants

Cat.6

UTP Cable

10 Gbit/s

Data Rate

28 AWG

Wire Gauge

Gold-Plated

Connectors

.161"

Diameter

12 ft

Length

In stock, ready to ship

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: Lifetime

Key Features

🚀 10 Gbit/s Data Transfer Rate for high-speed networking
📏 Ultra-slim 28-AWG design saves 50% space compared to standard cables
🔌 Gold-plated RJ-45 connectors for superior conductivity
🛡️ Snagless boot design with strain relief for damage protection
📊 Meets ANSI/TIA-568-C.2 performance standards
🔄 750 cycles connector insertion/extraction life
📦 Category 6 UTP patch cable for Gigabit networking
📏 12 ft length with slim .161 inches diameter
♾️ Lifetime warranty coverage
🌱 Environmentally friendly construction

Black Box Slim-Net Cat.6 UT...

$29.99

Close-up view of green Cat.6 network cable with transparent RJ-45 connector showing gold-plated contacts

Ultra-Slim Design Maximizes Network Performance

The Black Box Slim-Net Cat.6 cable features an innovative 28-AWG design that delivers powerful 10 Gbps performance in a remarkably compact form factor. The sleek green cable jacket houses gold-plated connectors that ensure reliable, high-speed data transmission while taking up minimal space in dense networking environments. The transparent RJ-45 connector showcases the precise engineering that enables this cable to maintain enterprise-grade performance despite its slim profile.

Technical Specifications

28-AWG ultra-slim cable design for space efficiency
Gold-plated contacts for superior conductivity
Transparent RJ-45 connector with strain relief

Applications

High-density data center installations
Space-constrained network closets
Server rack cable management

Side view of green Cat.6 patch cable showing both RJ-45 connectors with strain relief boots

Enhanced Cable Management With Dual-End Design

Both ends of the Slim-Net cable feature identical high-quality RJ-45 connectors with integrated strain relief boots. The matched connector design ensures consistent performance and reliable connections regardless of orientation. The green cable's flexibility and reduced diameter make it ideal for tight bends and complex routing paths while maintaining Cat.6 specifications.

Technical Specifications

Matched RJ-45 connectors for consistent performance
Integrated strain relief on both ends
Flexible cable design for complex routing

Applications

Cross-connect patching
Switch-to-server connections
Patch panel management

Comparison of clear and green snagless boots on Cat.6 cable connectors

Snagless Boot Technology Prevents Connection Damage

The innovative connector design features a clear snagless boot on one end and a green molded boot on the other, demonstrating the cable's versatility in different installation scenarios. The transparent boot allows for easy visual inspection of the connection while the molded boot provides enhanced grip and strain relief. Both designs effectively prevent snags and protect the cable's internal components during installation and maintenance.

Technical Specifications

Dual boot designs for installation flexibility
Snag-free connector protection
Enhanced grip surface for secure handling

Applications

Quick-deploy network installations
High-traffic connection points
Frequent maintenance environments

Cross-sectional view of Cat.6 cable internal wiring structure showing twisted pairs

Advanced Internal Construction for Superior Performance

A detailed cross-section reveals the sophisticated internal wiring structure that enables high-speed data transmission. The precisely twisted pair configuration and advanced insulation materials ensure optimal signal integrity and minimal crosstalk. This internal architecture demonstrates how the Slim-Net cable maintains enterprise-grade performance while reducing cable diameter by nearly 50% compared to standard Cat.6 cables.

Technical Specifications

Optimized twisted pair configuration
Premium insulation materials
50% diameter reduction vs standard Cat.6

Applications

10 Gigabit network deployments
High-bandwidth applications
EMI-sensitive environments

Product details

General Information

Manufacturer

Black Box Corporation

Manufacturer Part Number

C6PC28-GN-12

Brand Name

Black Box

Product Line

Slim-Net

Product Name

Slim-Net Cat.6 UTP Patch Network Cable

Product Type

Network Cable

Technical Information

Cable Type

Category 6

Cable Characteristic

Patch Cable

Cable Length

12 ft

Connector Type on First End

RJ-45 Network - Male

Connector on First End Details

1 x RJ-45 Network - Male

Connector Type on Second End

RJ-45 Network - Male

Connector on Second End Details

1 x RJ-45 Network - Male

Contact Plating

Gold

Shielding

No

Jacket Type

CM

Device Supported

Network Device
Patch Panel
Wallplate

American Wire Gauge

28 AWG

Data Transfer Rate

10 Gbit/s

Boot Type

Snagless

Features

Stranded
Strain Relief
Damage Resistant
Near End Cross Talk (NEXT)
Booted

Physical Characteristics

Product Color

Green

Jacket Material

Polyvinyl Chloride (PVC)

Miscellaneous

Environmentally Friendly

Yes

Country of Origin

China

Warranty

Limited Warranty

Lifetime

Included in the Box

Cat6 Cable - Network cable

Accessories

Black Box

Black Box Cat.6 Keystone Network Adapter, Unshielded RJ-45 Female Coupler, T568A/B...

$29.99

Cat.6

Standard

RJ-45

Connectors

T568A/B

Compatible

8-wire

Modular

Black Box

Black Box JPM818A CAT6 Network Patch Panel, Feed-Through 24-Port Unshielded, 1U Ra...

$269.99

24-Port

RJ-45 Ports

CAT6

Network Standard

1U

Rack Mount

Steel

Construction

Feed-Through

Panel Type

TAA

Compliant

Save 3%

Black Box

Black Box CAT6 Feed-Through Network Patch Panel, 48-Port Unshielded, 2U Rack-Mount...

$429.99 $443.49

48-Port

RJ-45 Density

CAT6

Network Standard

2U Rack

19" Mount

Steel Build

3.09 lb

Feed-Through

Unshielded

TAA Compliant

Certified

Save 7%

Black Box

Black Box JSM114A CAT6 Surge-Protected Network Patch Panel - 2U, 24-Port, TAA Comp...

$759.99 $813.03

24-Port

RJ-45 Ports

CAT6

Compliant

2U Rack

Mountable

Surge Protected

2000W

5ns Response

Time

TAA

Compliant

Black Box

Black Box Value Line CAT6 Keystone Jack Network Connector, RJ-45 Female, PoE Compa...

$89.99

CAT6

Performance

RJ-45

Female

PoE

Compatible

Gold-Flash

Contacts

110 Block

Termination

25-Pack

Quantity

FAQs

What are the key features of the Black Box Slim-Net Cat.6 UTP Patch Cable?

The Black Box Slim-Net Cat.6 UTP Patch Cable features a slim 28-AWG design with .161-inch diameter, offering 50% space savings compared to traditional 24-AWG cables. It supports 10 Gbit/s data transfer rates, includes snagless boots with strain relief, and 50-micron gold-plated contacts. The cable is designed for 750 insertion/extraction cycles, features damage-resistant construction, and comes with Near End Cross Talk (NEXT) protection. It's ideal for high-density Gigabit networking applications and meets ANSI/TIA-568-C.2 performance standards.

What is the data transfer rate and compatibility of this network cable?

This Cat.6 UTP patch cable supports data transfer rates up to 10 Gbit/s, making it suitable for Gigabit Ethernet applications. It's compatible with various network devices, patch panels, and wallplates. The cable meets ANSI/TIA-568-C.2 performance standards and features RJ-45 male connectors on both ends for universal connectivity in standard networking environments.

What are the physical specifications of the cable?

The cable is 12 feet long and features an ultra-slim .161-inch diameter using 28-AWG conductors. It comes in green color with a PVC (Polyvinyl Chloride) jacket material and CM-type jacket rating. The cable includes gold-plated contacts and snagless boots on both ends. Its slim design allows for improved airflow and better port visibility in dense installations.

How does the slim design benefit cable management?

The slim design provides multiple benefits for cable management: it saves over 50% space compared to traditional cables, allows easier handling during installation and maintenance, improves airflow between cables, enhances port visibility, and reduces or eliminates the need for horizontal cable managers. The small footprint and flexibility make it possible to route cables without dedicated cable managers and maximize space in vertical cable managers.

What type of connectors does the cable use?

The cable features RJ-45 Network Male connectors on both ends, equipped with 50-micron gold-plated contacts for superior conductivity. Each connector includes snagless boots that provide strain relief and prevent damage during installation. The connectors are rated for 750 insertion and extraction cycles, ensuring long-term reliability.
