AXIS


5715C001


The Canon VB-H47 Full HD PTZ IP security camera combines a powerful 320x zoom with excellent low-light capability, WDR (Wide Dynamic Range) function and fast auto-focus. The product offers flexible installation options for indoor use.

New image sensor and video network engine

Canon's popular network cameras have further evolved with the latest specifications and performance, equipped with a newimage sensorand video network engine, while maintaining various functions, compactness, and ease of use.

H.264 and H.265 support

The camera delivers a full HD 60 fps video stream and can simultaneously provide five streams including two H.265 or H.264 streams.

High PTZ performance

Canon VB-H47 offers f fast, high-precision pan/tilt/zoom (PTZ) capability to programmed pre-set positions.



Product details

General Information
Manufacturer

Axis Communications

Manufacturer Part Number

5715C001

Brand Name

AXIS

Product Model

VB-H47

Product Name

Canon VB-H47

Product Type

Network Camera

Technical Information
Recording Formats

Full HD

HD Recording

Yes

Display & Graphics
Image Sensor Type

CMOS

Image Sensor Size

1/2.8''

Color Supported

Color
Monochrome

Field of View

Horizontal: 62.4° (W) - 3.3° (T) Vertical: 36.3° (W) - 1.9° (T)

Effective Camera Resolution

2 Megapixel

Video
Video Formats

H.264
H.265
JPEG

Maximum Video Resolution

1920 x 1080

Maximum Frame Rate

60 fps

Lens
Lens Type

Varifocal

Minimum Focal Length

4.70 mm

Maximum Focal Length

94 mm

Lens Included

Yes

Maximum Aperture

f/1.6

Exposure
Shortest Shutter Speed

1/16000 Second

Longest Shutter Speed

1 Second

Network & Communication
Connectivity Technology

Wired

Remote Management

Yes

Storage
Storage Type

Memory Card

Interfaces/Ports
Network (RJ-45)

Yes

Power Description
Power Source Type

DC
PoE

Physical Characteristics
Mount Type

Ceiling Mount

Color Family

White

Product Color

White

Height

6.1''

Diameter

5.2''

Weight (Approximate)

2.43 lb

Environmental Conditions
Minimum Operating Temperature

14°F (-10°C)

Maximum Operating Temperature

122°F (50°C)

Maximum Operating Humidity

90%

Miscellaneous
Features

Tamper Detection
Panoramic Stream
Privacy Masking
HTTPS Encryption
Wide Dynamic Range
White Balance
Day/Night
Noise Reduction
Auto Image Stabilizer
Human Detection
Face Detection
Auto Gain Control

Indoor/Outdoor

Indoor

FAQs

Didn’t find your answer?

Don't hestitate to contact us

Compare Similar Products

Specification
AXIS (5715C001) Surveillance/Network Cameras
AXIS (5715C001) Surveillance/Network Cameras

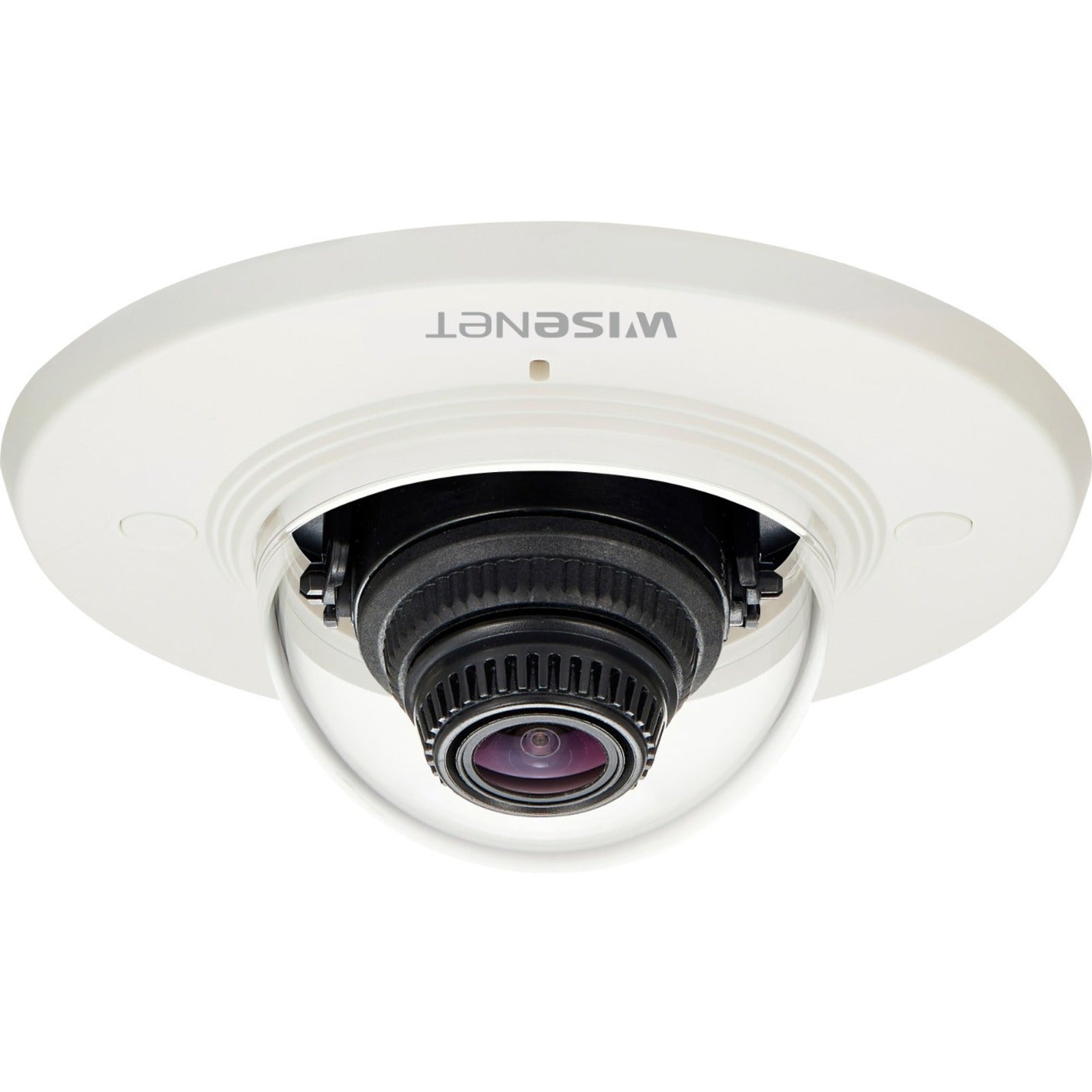

Wisenet X Series XND-6011F 2MP Full HD Network Dome Camera, Indoor Flush Mount, Fixed 2.8mm Lens, H.265/H.264, 60fps, WDR, Day/Night, Motion Detection, NDAA Compliant, Ivory/Black - XND6011F (3 Year Warranty)
Wisenet X Series XND-6011F 2MP Full HD Network ...

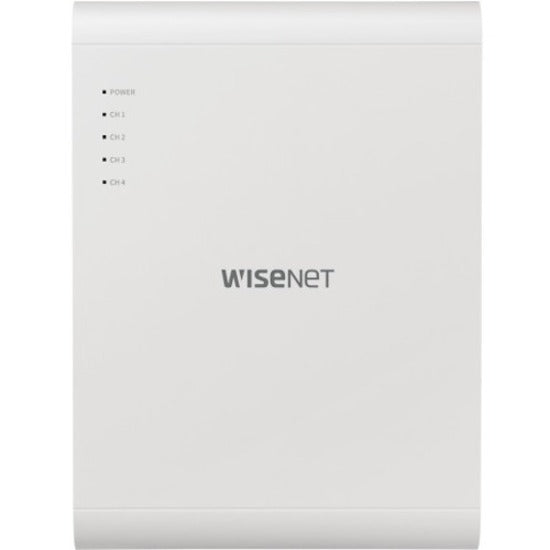

Wisenet WN7 2MP x 4CH Network Camera, Remote Head, H.264/H.265, 30fps Full HD, Dual SD Cards, WDR 150dB, Motion Detection, NDAA Compliant - PNM-9000QB (1 Year Warranty)
Wisenet WN7 2MP x 4CH Network Camera, Remote He...

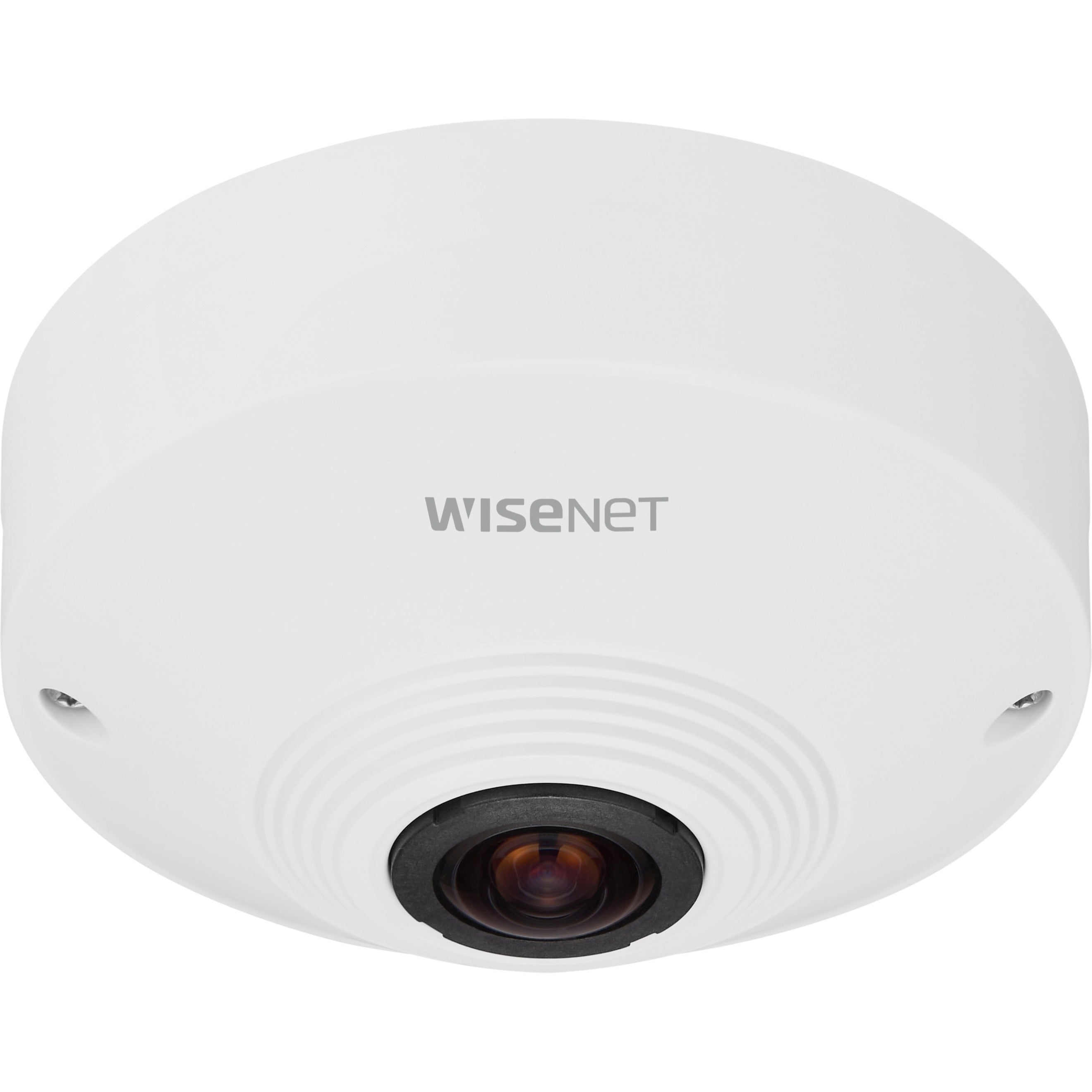

Wisenet Q Series 6MP Indoor Network Camera, 360° Fisheye, Fixed Lens, H.265/H.264, 2048x2048 Resolution, PoE, Motion Detection, Black - QNF-8010B (3 Year Warranty)
