AXIS TU8010 PoE extender showing dual RJ-45 ports with power ratings and LED status indicators-alternate-image1

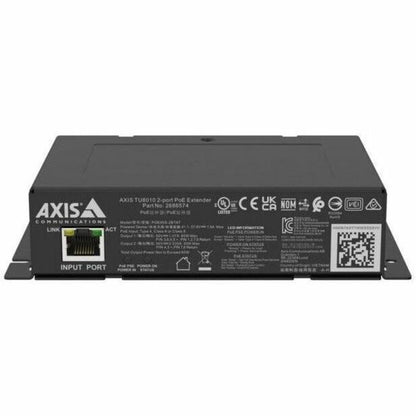

Bottom view of AXIS TU8010 showing input port, certification markings, and detailed technical specifications-alternate-image2

02726-001

$299.99

AXIS (02726001) Power Injectors/Splitters (02726-001)

Name: AXIS (02726001) Power Injectors/Splitters (02726-001)
Brand: AXIS
SKU: 02726-001
Price: 299.99 USD
Availability: OutOfStock

Brand New

FREE Returns

Product variants

90W Power

Maximum Output

100m Range

Extension

2-Port

RJ-45 Output

IEEE 802.3bt

Compliant

IP66 Rated

Protection

1.21 lb

Lightweight

Out of stock

Share:

Share

Need help?

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 3 Year

Key Features

Extend PoE connection with 100 m
Supports up to two 30 W devices
IEEE 802.3bt and High PoE 60 W compatible
Plenum-rated
Connects to existing network

AXIS TU8010 PoE extender showing dual RJ-45 ports with power ratings and LED status indicators

Dual-Port Power Distribution with Smart Load Management

The AXIS TU8010 revolutionizes PoE installations with its intelligent dual-port design that adapts to your power requirements. Port 1 delivers up to 60W for high-power devices like PTZ cameras or multi-sensor units, while Port 2 provides 30W for standard surveillance equipment. The clearly labeled ports eliminate guesswork during installation, and the integrated LED status indicators provide real-time feedback on link activity and PoE delivery status. This smart power allocation means you can connect one power-hungry device alongside a standard camera, or pair two 30W devices for maximum efficiency. The rugged mounting brackets ensure secure installation in cabinets, on walls, or DIN rails, while the compact form factor fits into tight spaces where traditional power solutions won't work.

Technical Specifications

Port 1: 60W maximum output for high-power IEEE 802.3bt devices
Port 2: 30W maximum output for standard PoE+ equipment
90W total input power requirement with IEEE 802.3bt Type 4 compliance
Integrated mounting brackets for wall, ceiling, cabinet, or DIN rail installation

Applications

Powering PTZ cameras with heaters in remote locations beyond 100m from switch
Supporting multi-sensor cameras and people counters in large facilities
Connecting two standard dome cameras from a single network run
Extending power to access control devices in secure areas

Product details

General Information

Manufacturer

Axis Communications

Manufacturer Part Number

02726-001

Brand Name

AXIS

Product Model

TU8010

Product Name

TU8010 PoE Extender 2-port

Product Type

PoE Extender

Power Description

Maximum Output Power

90 W

Interfaces/Ports

Input Ports

1 x RJ-45

Output Ports

2 x RJ-45

Physical Characteristics

Color Family

Black

Product Color

Black

Form Factor

Wall/Ceiling/Cabinet/DIN Rail Mountable

Height

1.5''

Width

5.4''

Depth

3.9''

Weight (Approximate)

1.21 lb

Miscellaneous

Package Contents

TU8010 PoE Extender 2-port
Installation Guide

Compatibility

Axis Products:

P8815-2 3D People Counter
D4100-E Network Strobe Siren
M1055-L Box Camera
M1075-L Box Camera
M1135 Mk II Box Camera
M1135-E Mk II Box Camera
M1137 Mk II Box Camera
M1137-E Mk II Box Camera
P1385 Box Camera
P1387 Box Camera
P1388 Box Camera
M2035-LE Bullet Camera
P1455-LE Network Camera
P1465-LE Bullet Camera
P1467-LE Bullet Camera
P1468-LE Bullet Camera
M3077-PLVE Network Camera
M3085-V Dome Camera
M3115-LVE Network Camera
M3215-LVE Dome Camera
M3216-LVE Dome Camera
M3905-R Dome Camera
M4215-LV Dome Camera
M4215-V Dome Camera
P3255-LVE Dome Camera
P3265-LV Dome Camera
P3265-LVE Dome Camera
P3267-LV Dome Camera
P3267-LVE Dome Camera
P3268-LV Dome Camera
P3268-LVE Dome Camera
P3268-SLVE Dome Camera
P3818-PVE Panoramic Camera

https://www.axis.com/products/axis-tu8010-2-port-poe-extender#technical-specifications

Certifications & Standards

IEEE 802.3bt
IP66
CE
UL
UKCA
IEEE 802.3at
IEEE 802.3af
IEEE 802at
IEEE 802bt
cUL
KC
VCCI
RCM
NOM
C
BSM
EN 55035
EN 55032 Class A
EN 50121-4
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
FCC Part 15 Subpart B Class A
BSMI-mark
CAN/CSA C22.2 No. 62368-1 ed. 3
IEC/EN/UL 62368-1 ed. 3
KC-mark
NOM-001
UL 2043 (plenum rated)

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year

Included in the Box

TU8010 PoE Extender
Installation Guide

Accessories

AXIS

AXIS T8061 Ethernet Surge Protector 10000VA, NDAA Compliant Network Protection Dev...

$129.99

10000VA

Power Handling

IP66

Weatherproof

Ethernet

Protection

9.52oz

Lightweight

Metal

Enclosure

NDAA

Compliant

AXIS

AXIS White Light Illuminator, PoE Network Camera Accessory, Impact Resistant Alumi...

$909.99

PoE

Power Supply

IK09

Impact Rating

Aluminum

Construction

Impact Resistant

Durability

TAA/NDAA

Compliant

AXIS

AXIS IR/White Light Illuminator, Network Camera Compatible, PoE-Powered, Impact Re...

$959.99

PoE Powered

Ethernet Power

Impact Resistant

Rugged Build

Dual Material

Polycarbonate/Aluminum

IR/White Light

Dual Illumination

TAA/NDAA

Gov Compliant

AXIS

AXIS Steel DIN Rail Mounting Bracket for Surveillance Camera, 35mm Standard Compat...

$39.99

Steel Build

Durable Material

35mm DIN

Standard Rail

PTZ Support

Dome Compatible

3 Pack

Multi Unit

AXIS

AXIS - Modular insert - RJ-45 (pack of 10) (01996-001)

$159.99

FAQs

What is the main purpose of the AXIS TU8010 PoE Extender?

The AXIS TU8010 PoE Extender is designed to extend PoE connectivity up to 100 meters (328 ft) in installations where adding power is challenging. It can either power one 60W device using IEEE 802.3bt or split power to two 30W devices, making it ideal for expanding existing network infrastructure while reducing costs and installation time.

What are the power capabilities of the AXIS TU8010?

The AXIS TU8010 requires 90W IEEE 802.3bt Type 4 Class 8 input and can distribute power in two ways: it can power a single 60W device supporting IEEE 802.3bt, or it can power two separate 30W devices simultaneously. The maximum output power is 90W, making it suitable for powering high-performance network devices.

What are the connectivity options on the AXIS TU8010?

The AXIS TU8010 features 1 x RJ-45 input port and 2 x RJ-45 output ports. This configuration allows for connecting either one high-power device or two lower-power devices, supporting various PoE standards including IEEE 802.3bt, IEEE 802.3at, and IEEE 802.3af.

What are the mounting options and physical specifications of the AXIS TU8010?

The AXIS TU8010 is versatile in mounting options, being wall/ceiling/cabinet/DIN rail mountable. It measures 1.5" in height, 5.4" in width, and 3.9" in depth, weighing approximately 1.21 lb. The unit comes in black and is designed for flexible installation in various environments.

What environmental conditions can the AXIS TU8010 withstand?

The AXIS TU8010 is built for extreme conditions, operating in temperatures from -40°C to 65°C (-40°F to 149°F). When installed in an IP66-rated Axis surveillance cabinet, it becomes weatherproof and vandal resistant. It's also plenum-rated (UL 2043), making it suitable for installation in air-handling spaces.
