Laptops & Notebooks
02408-001
$989.99
AXIS I8116-E Network Video Intercom, 5MP Outdoor Access Control Camera, IP65-Rated, Full-Duplex Communication, 162° View, TAA Compliant - 02408-001 (1 Year Warranty)
Brand New
FREE Returns
5MP Camera
CMOS Sensor
162° View
Wide Angle
IP65 Rated
Weatherproof
Full-Duplex
Two-Way Audio
PoE Power
10.8W Max
0.2 Lux
Low Light
In stock, ready to ship
Order in the next
to be delivered on
Monday, Jul 14
--
hrs--
mins
Ask Our Experts
Call Us
888.267.9566
Pairs well with
In stock! Ships within 1-2 business days.
30 days Free Return
Complimentary shipping & returns
1-Year Warranty
Key Features
- 🎥 5 Megapixel CMOS camera with 162° horizontal viewing angle
- 🔒 IP65-rated outdoor intercom with IK08 impact protection
- 🤖 Deep learning capabilities with AXIS Object Analytics preinstalled
- 🔐 Built-in cybersecurity features with IEEE 802.1X support
- 🗣️ Full-duplex communication with noise cancellation
- 📡 SIP and ONVIF protocol support for easy integration
- 💡 Low-light performance at 0.2 lux minimum illumination
- ⚡ PoE powered with max 10.8W consumption
- 🔌 OSDP reader support for access control integration
- 🌐 Supports IPv4/IPv6 with multiple network security protocols
AXIS I8116-E Network Video ...
$989.99
5MP Camera with Wide-Angle Coverage for Enhanced Security

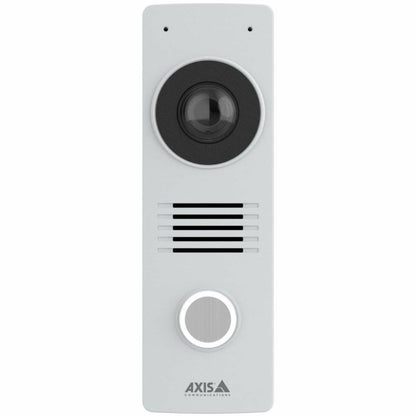

The AXIS I8116-E Network Video Intercom features a high-resolution 5MP camera with a 162° horizontal viewing angle, ensuring comprehensive coverage of entry points. The sleek white aluminum and polycarbonate construction houses advanced imaging technology that delivers clear visuals even in challenging lighting conditions. The integrated speaker grille and illuminated call button provide essential communication features in a compact form factor.
Technical Specifications
- 5 Megapixel camera resolution for detailed surveillance
- 162° horizontal and 118° vertical viewing angles
- IP65-rated weather-resistant construction
Applications
- Secure entrance monitoring for commercial buildings
- Access control integration for corporate facilities
- Visitor management for industrial complexes
Full-Duplex Communication with Noise Cancellation
The intercom's advanced audio system enables clear two-way communication through the integrated speaker and microphone array. Built-in noise cancellation technology filters out ambient sounds, ensuring crystal-clear conversations. The device's slim profile maintains architectural aesthetics while delivering enterprise-grade communication capabilities.
Technical Specifications
- Full-duplex audio communication system
- Advanced noise cancellation technology
- Integrated speaker and microphone array
Applications
- Clear visitor communication in noisy environments
- Remote entry management for businesses
- Security checkpoint communication
Seamless Integration for Modern Access Control
The AXIS I8116-E demonstrates its practical application in a modern business environment, mounted at optimal height for visitor interaction. The slim profile complements contemporary architecture while providing essential security features. The intercom's positioning allows for natural interaction while maintaining professional surveillance capabilities.
Technical Specifications
- Optimal mounting height of 1.2-4.0 ft
- Slim profile design for architectural integration
- Support for AXIS Access Control solutions
Applications
- Professional office entrance security
- Corporate visitor management
- Integrated access control systems
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for domestic (US)
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
Axis Communications
Manufacturer Part Number
02408001
Brand Name
AXIS
Product Model
I8116-E
Product Name
I8116-E Network Video Intercom
Product Type
Video Door Phone Sub Station
Technical Information
Communication Mode
Full-duplex
Ingress Protection (IP) Rating
IP65
Impact Protection (IK) Rating
IK08
Camera
Image Sensor Type
CMOS
Camera Resolution
5 Megapixel
Minimum Illumination
0.2 lux
Horizontal Viewing Angle
162°
Vertical Viewing Angle
118°
Power Description
Power Consumption
10.80 W
Physical Characteristics
Product Color
White
Product Material
Aluminum
Zinc
Polycarbonate
Height
5.8
Width
1.9
Depth
1.6
Weight (Approximate)
14.11 oz
Miscellaneous
Application/Usage
Outdoor
Access Control
Additional Information
- Network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
- Network security: IEEE 802.1X (EAP-TLS)b , IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
- Wall mount or recessed with AXIS TI8204 Recessed Mount
- Recommended height: 0.38-1.22 m (1.2-4.0 ft)
- Power over Ethernet (PoE): IEEE 802.3af/802.3at Type 1 Class 3
- Typical 4 W, max 10.8 W
- Power out: 1x12 V DC, max out: 350 mA at 12 V DC
- Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
- I/O: Terminal block for two configurable inputs / digital outputs
- Serial communication: RS485, half duplex/2-wire
- Languages: English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
TAA Compliant
Yes
Included in the Box
I8116-E Intercom
Installation Guide
Mounting Hardware
Similar Products
Vendor:Aiphone
330ft Range
Max Distance
2-Wire System
Simple Install
CMOS Camera
5 Lux
Stainless Steel
Vandal Resistant
Flush Mount
8.2" x 5.3"
1.26 lbs
Lightweight
Vendor:2N
135° View
Wide Angle
Full-Duplex
Audio
10W Audio
Amplifier
IP69K
Waterproof
PoE Enabled
Power
HD Camera
1280x960
Vendor:2N
135° View
Wide Angle
Full-Duplex
Audio
IP69K Rated
Waterproof
PoE Power
802.3af
ONVIF
Compatible
10W Audio
Speaker
Vendor:2N
135° View
Wide Angle
Full-Duplex
Audio
IP69K Rated
Weatherproof
10W Audio
Speaker
PoE Powered
802.3af
ONVIF Compatible
v2.4
Vendor:2N
135° View
Wide Angle
Full-Duplex
Two-Way Audio
IP69K Rated
Water Resistant
PoE Powered
Single Cable
ONVIF Compatible
Universal Standard
10W Audio
Clear Sound
FAQs
What are the key features of the AXIS I8116-E Network Video Intercom?
The AXIS I8116-E Network Video Intercom is a compact, powerful device that combines a 5MP security camera with intercom functionality. Key features include two-way communication, remote entry control, Wide Dynamic Range (WDR), noise cancellation, OSDP reader support, and AXIS Object Analytics powered by deep learning. It supports open standards like ONVIF and SIP, offers built-in cybersecurity features, and features an IP65 rating for outdoor use.
What are the camera specifications of the AXIS I8116-E?
The AXIS I8116-E features a 5 Megapixel CMOS image sensor with excellent low-light performance (minimum illumination of 0.2 lux). It provides an exceptionally wide field of view with a 162-degree horizontal viewing angle and 118-degree vertical viewing angle. The camera delivers high-quality video with WDR technology for challenging lighting conditions.
Is the AXIS I8116-E suitable for outdoor installation?
Yes, the AXIS I8116-E is specifically designed for outdoor installation with an IP65 rating for dust and water protection and an IK08 impact rating for vandal resistance. The device is constructed with durable materials including aluminum, zinc, and polycarbonate. It's recommended to install at a height between 0.38-1.22 meters (1.2-4.0 ft) for optimal performance.
What networking and connectivity options does the AXIS I8116-E support?
The device supports comprehensive networking capabilities including IPv4/IPv6, HTTP/HTTPS, FTP, SMTP, and various security protocols. It features a RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE connection, RS485 serial communication, and I/O terminal blocks for configurable inputs/outputs. It's powered via PoE (IEEE 802.3af/802.3at Type 1 Class 3) and supports multiple network security standards including IEEE 802.1X.
What are the physical dimensions and mounting options for the AXIS I8116-E?
The AXIS I8116-E has a compact mullion form factor measuring 5.8" in height, 1.9" in width, and 1.6" in depth, weighing approximately 14.11 oz. It can be wall-mounted or recessed using the AXIS TI8204 Recessed Mount. The white-colored unit is designed to blend seamlessly with various architectural styles.
