ACS1216A
ATEN A Single Console Controls 16 Computers (ACS1216A)
FREE Returns
Pairs well with
In stock! Ships within 1-2 business days.
30 days Free Return
Complimentary shipping & returns
Limited warranty: 1 Year
ATEN
ACS1216A

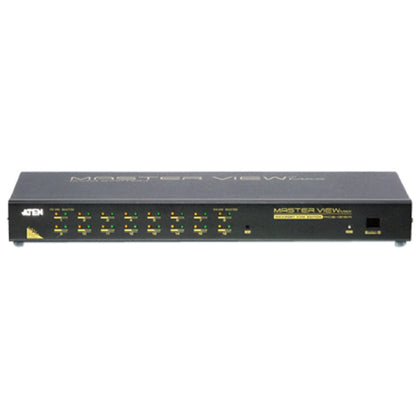

The Master View ACS-1216A KVM Switch controls units that allow access to multiple computers from a single console (keyboard, mouse, and monitor). Before the development of the Master View, the only way to control multiple computer configurations from a single console was through a complex and costly network system. Now, with the ACS-1216A, you can easily access multiple computers in a cost effective manner.
A single Master View can control up to 16 (ACS-1216A) computers. As many as 31 additional switches can be added in a daisy chain configuration, allowing up to 512 computers to be controlled from a single keyboard-monitor-mouse console.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for domestic (US)
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
ATEN Technology, Inc
Manufacturer Part Number
ACS1216A
Brand Name
ATEN
Product Line
MasterView
Product Name
MasterView KVM Switch
Product Type
KVM Switchbox
Technical Information
Number of Computers Supported
16
Minimum Scan Interval
1 Second
Maximum Operating Distance
70.80''
Video
Graphic Mode
SVGA
VGA
Maximum Video Resolution
2048 x 1536
Interfaces/Ports
PS/2 Port
Yes
VGA
Yes
Number of PS/2 Ports
2
Number of VGA Ports
1
Power Description
Input Voltage
9 V DC
Power Consumption
8 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.8''
Width
19''
Depth
6.1''
Weight (Approximate)
6.23 lb
Miscellaneous
Package Contents
- 1 x ACS-1216A KVM Switch

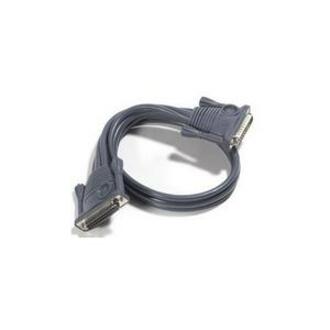

- 2 x Custom KVM Cable Sets (2L-5202P)
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Rack Mounting Kit
- 1 x User Manual
Compatibility
- Supports PS/2 Compatible Mice, Microsoft Intellimouse Explorer, Logitech FirstMouse+
Additional Information
- Daisy Chain Up to 31 Additional Units to Control Up to 512 Computers
- Auto-Sensing of Station Position on Daisy Chained Installation
- Intelligent OSD (On Screen Display) and Hotkey Switching for Efficient System Handling
- OSD Is Mouse Driven for Quick and Convenient Navigation of The Menus
- DDC Emulation - VGA Settings of Every Connected Computer Are Automatically Adjusted for Optimal Output
- Hot Pluggable Allowing Add or Remove Computers without Powering Down The Switches
- Firmware upgradable to all stations simultaneously via chain
- PS/2 Keyboard and Mouse Emulation - Computers Boot Even When the Console Focus is Elsewhere
- Superior Video Quality - Supports Resolutions of Up To 2048 x 1536
Platform Supported
Mac
PC
Certifications & Standards
- FCC Part 15
Warranty
Limited Warranty
1 Year
