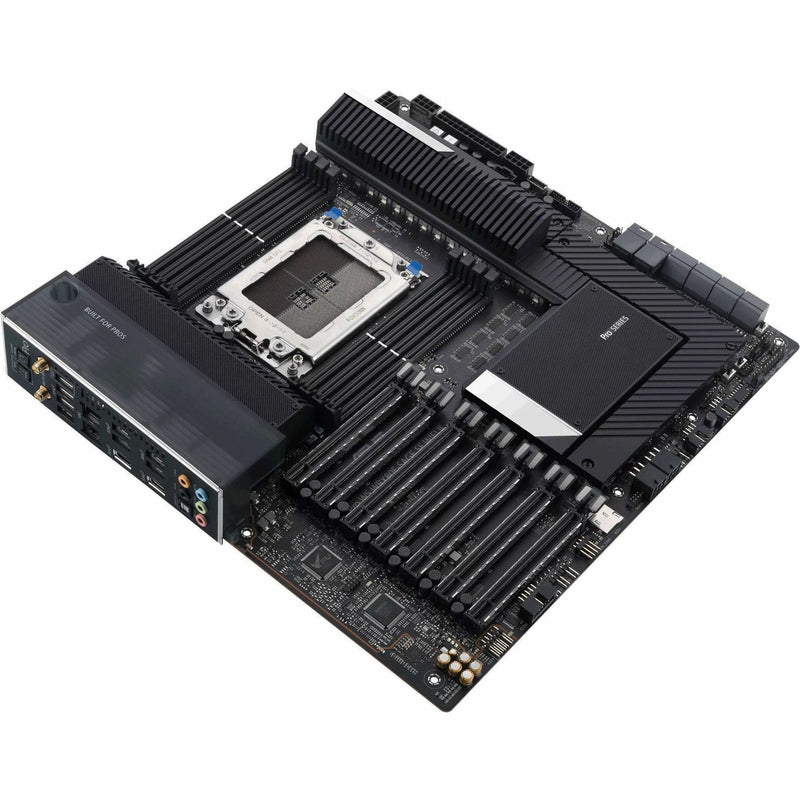

ASUS WS WRX80E-SAGE SE WIFI II Professional Workstation Motherboard
Experience unprecedented workstation performance with the ASUS WS WRX80E-SAGE SE WIFI II, designed for AMD Ryzen Threadripper PRO processors. This Extended ATX motherboard delivers enterprise-grade features with support for up to 2TB of ECC memory, seven PCIe 4.0 x16 slots, and advanced connectivity options including Intel dual 10G LAN and WiFi 6E.
Professional-Grade Performance Features
- AMD sWRX8 Socket supporting Ryzen Threadripper PRO Series processors with overclocking capabilities
- 16 power stages for stable high-performance computing
- Support for up to 2TB DDR4 memory with ECC, RDIMM, LRDIMM, and UDIMM compatibility
- Seven PCIe 4.0 x16 slots with SafeSlot reinforcement
- ASMB9-iKVM remote management with AST-2500 BMC chip
Advanced Storage and Connectivity
- 3 x M.2 PCIe 4.0 slots with dedicated heatsinks and Q-Latch mechanism
- 2 x U.2 ports for enterprise-grade storage solutions
- 8 x SATA 6Gb/s ports with RAID support
- Intel X550-AT2 dual 10Gb Ethernet
- WiFi 6E and Bluetooth 5.3 connectivity
- USB 3.2 Gen 2x2 Type-C port and 10 USB 3.2 Gen 2 ports
Workstation-Class Features
- Extended ATX form factor (13" x 12.2")
- Professional black aluminum design with stainless steel mesh
- 24/7 reliability testing for maximum stability
- 7.1 channel HD audio support
- CPU-dependent video output with VGA port
Package Contents
- PRO WS WRX80E-SAGE SE WIFI II Desktop Motherboard
- 6 x SATA 6Gb/s cables
- 1 x VGA cable
- 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
- 1 x Hyper M.2 X16 Gen 4 Card
- 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card
- 3 x Q Latch
- 7 x M.2 Rubber Packages
- 1 x Q-connector
- 1 x Support DVD
- 1 x User manual
AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages, and WIFI 6E
- AMD sWRX8 Socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors, with overclocking available to dip into untapped potential and performance
- Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel®X550-AT2 dual 10Gb Ethernet, WiFi 6E
- ASMB9-iKVM remote management: AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
Ultimate power for professional productivity
The ASUS Pro WS WRX80E-SAGE SE WIFI II is engineered to unleash the incredible power of the latest AMD Ryzen™ Threadripper™ Pro series processors, with support for overclocking to dip into untapped potential and performance. This reliable multi-core CPU foundation is the ideal choice for professional creative workloads like video editing and 3D rendering. Additionally, seven PCIe® 4.0 slots with SafeSlot fortification can deliver exceptional performance for the latest high-powered graphics cards and storage devices.
FUNCTION-FIRST AESTHETICS Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI II presents a professional, low-profile look for content creators.
Multi-GPU support
Pro WS WRX80E-SAGE SE WIFI II features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

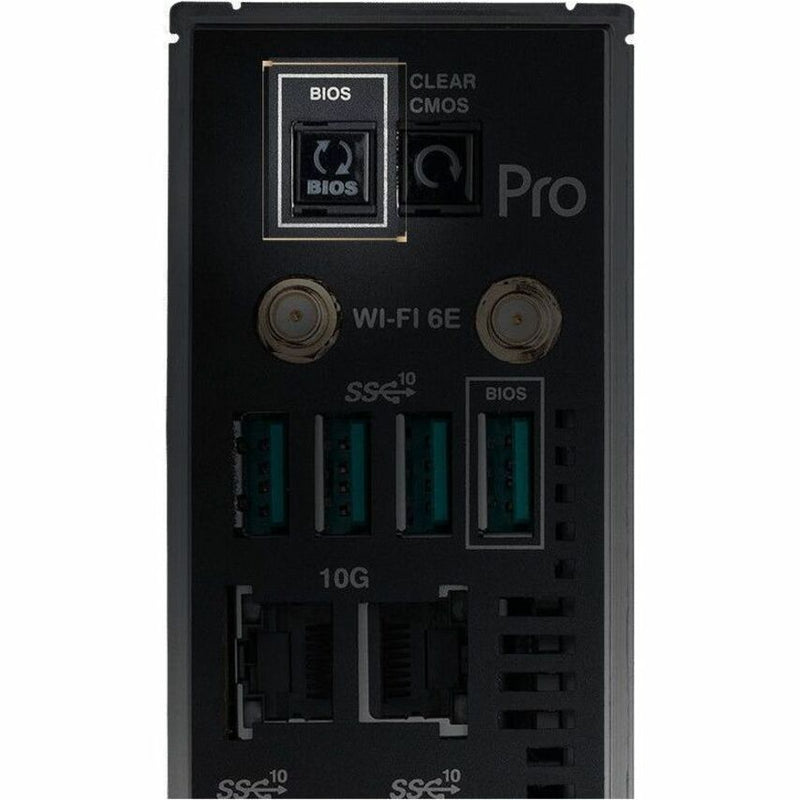

ULTRAFAST CONNECTIVITY TO POWER CREATIVITY | Intel® dual 10G Ethernet
Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel® X550-AT2 Ethernet controller, Pro WS WRX80E-SAGE SE WIFI II makes short work of multi-terabyte transfers from your creativities and provides server-grade connectivity with low-latency.
3 M.2 PCIe 4.0
Pro WS WRX80E-SAGE SE WIFI II includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three M.2 slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch.
More storage
With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput - up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.
Supreme memory capability
The ASUS Pro WS WRX80E-SAGE SE WIFI II supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes. Being infused with proprietary memory trace layout that improve signal integrity and mitigate noise, this motherboard enables DDR4 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.
