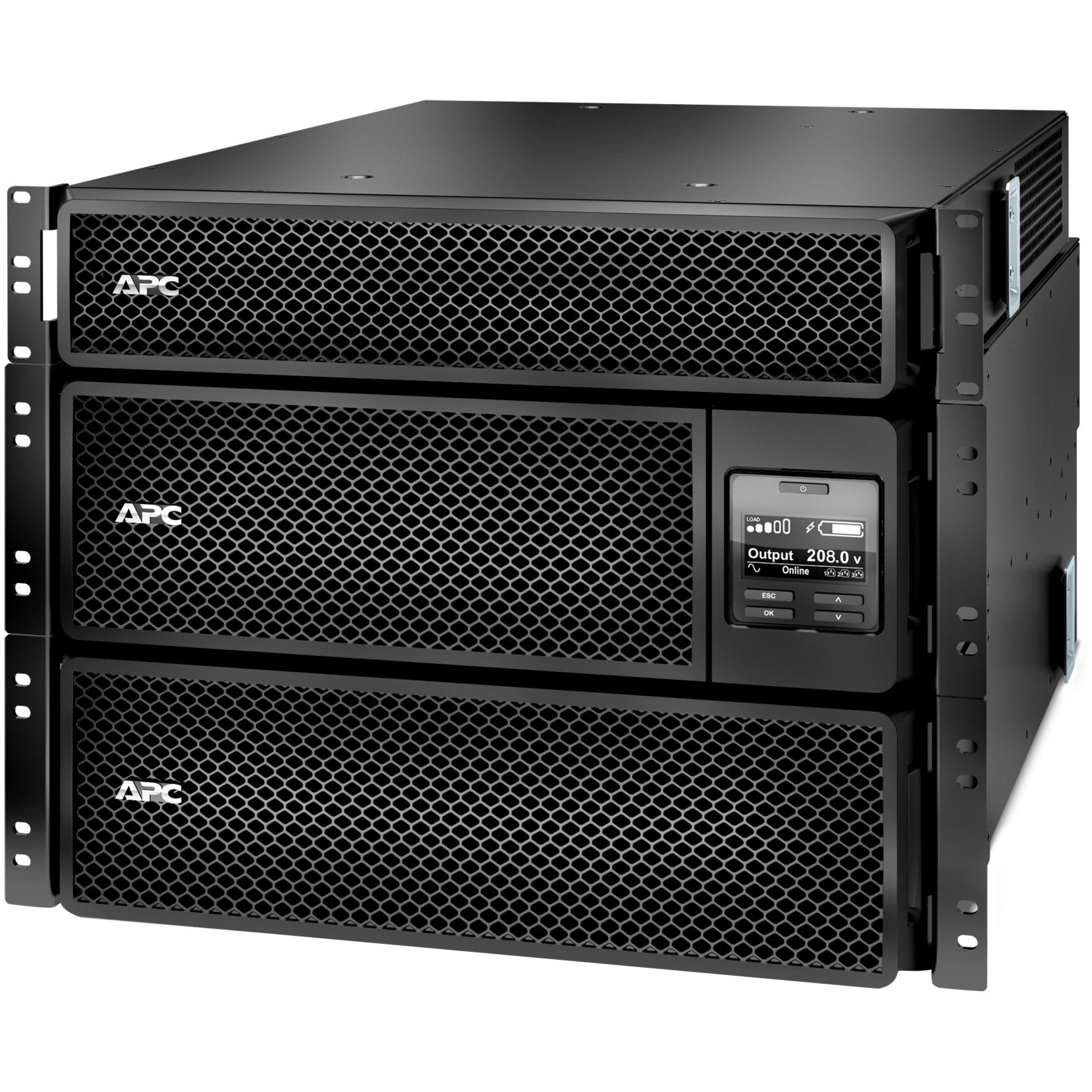

Front view of APC Smart-UPS SRT 8000VA showing LCD display panel and ventilated front panels

Enterprise-Grade Power Protection with Intelligent LCD Display

The APC Smart-UPS SRT 8000VA features an intuitive LCD interface that delivers real-time monitoring of critical power metrics. The high-contrast display shows output voltage, battery status, and load levels at a glance, enabling proactive power management. The sleek black chassis with diamond-pattern ventilation grilles ensures optimal airflow while maintaining a professional appearance.

Technical Specifications

  • 208V output voltage with precise regulation
  • Integrated network management card for remote monitoring
  • High-efficiency double conversion topology

Applications

  • Data center rack power protection
  • Network infrastructure backup power
  • Industrial control system protection
Close-up view of APC Smart-UPS SRT 8000VA LCD display panel showing power metrics

Advanced Monitoring Through High-Resolution Display

The detailed view of the LCD interface demonstrates the unit's comprehensive monitoring capabilities. Users can access detailed power quality metrics, configuration settings, and diagnostic information through the intuitive menu system. The clear, backlit display ensures visibility in any lighting condition.

Technical Specifications

  • Multi-function LCD interface with power metrics
  • Real-time status monitoring
  • Customizable alert thresholds

Applications

  • IT infrastructure monitoring
  • Power quality analysis
  • System performance tracking

Product details

General Information
Manufacturer

Schneider Electric SA

Manufacturer Part Number

SRT8KXLT

Brand Name

APC by Schneider Electric

Product Line

Smart-UPS On-Line

Product Name

Smart-UPS SRT 8000VA 208V

Product Type

Double Conversion Online UPS

Technical Information
Receptacle Type

NEMA L6-30R
Hard Wire 3-wire (2PH + G)
NEMA L6-20R

Receptacle Detail

2 x NEMA L6-30R
4 x NEMA L6-20R
1 x Hard Wire 3-wire (2PH + G)

Number of Battery & Surge Outlets

6

Power Description
Load Capacity

8000 VA/8000 W

Input Voltage

208 V AC

Output Voltage

208 V AC

Waveform Type

Sine Wave

Battery Information
Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

5 Minute

Typical Battery Recharge Time

1.50 Hour

Physical Characteristics
Product Color

Black

Height

17

Width

10.4

Depth

28.2

Form Factor

Rack-mountable

Weight (Approximate)

246 lb

Miscellaneous
Package Contents

  • Smart-UPS SRT 8000VA 208V
  • CD with software
  • Documentation CD
  • Installation guide
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
  • Energy Star

    Yes

    Environmentally Friendly

    Yes

    Environmental Certification

    REACH
    RoHS

    Warranty
    Limited Warranty

    3 Year

    FAQs

    What is the power capacity of the APC SRT8KXLT Smart-UPS?
    The APC SRT8KXLT Smart-UPS has a power capacity of 8000 VA/8000 W, making it suitable for supporting heavy-duty equipment like servers, data networks, and industrial applications. This high capacity allows it to handle multiple connected devices simultaneously while providing clean, uninterrupted power.
    What type of outlets does this UPS provide?
    This Smart-UPS features multiple outlet types including 2 NEMA L6-30R receptacles, 4 NEMA L6-20R receptacles, and 1 hardwire 3-wire (2PH + G) connection. In total, it provides 6 battery and surge-protected outlets, offering flexible connectivity options for various equipment power requirements.
    What is the backup runtime for this UPS system?
    The APC SRT8KXLT provides 5 minutes of backup runtime at full load (8000W). The system features a quick recharge time of 1.5 hours to return to full capacity. For extended runtime needs, the UPS can be configured with matching battery packs to provide additional hours of backup power.
    What are the installation options for this UPS?
    This Smart-UPS is designed as a rack-mountable unit with a convertible rack/tower form factor. The unit measures 17" in height, 10.4" in width, and 28.2" in depth. While it's substantial at 246 lbs, its versatile design allows for both rack mounting and tower positioning, providing flexible installation options for different environments.
    What power protection technology does this UPS use?
    The APC SRT8KXLT utilizes true double-conversion online UPS technology, providing the highest level of power protection. It generates pure sine wave output and features extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction, making it ideal for protecting sensitive equipment in harsh power environments.
