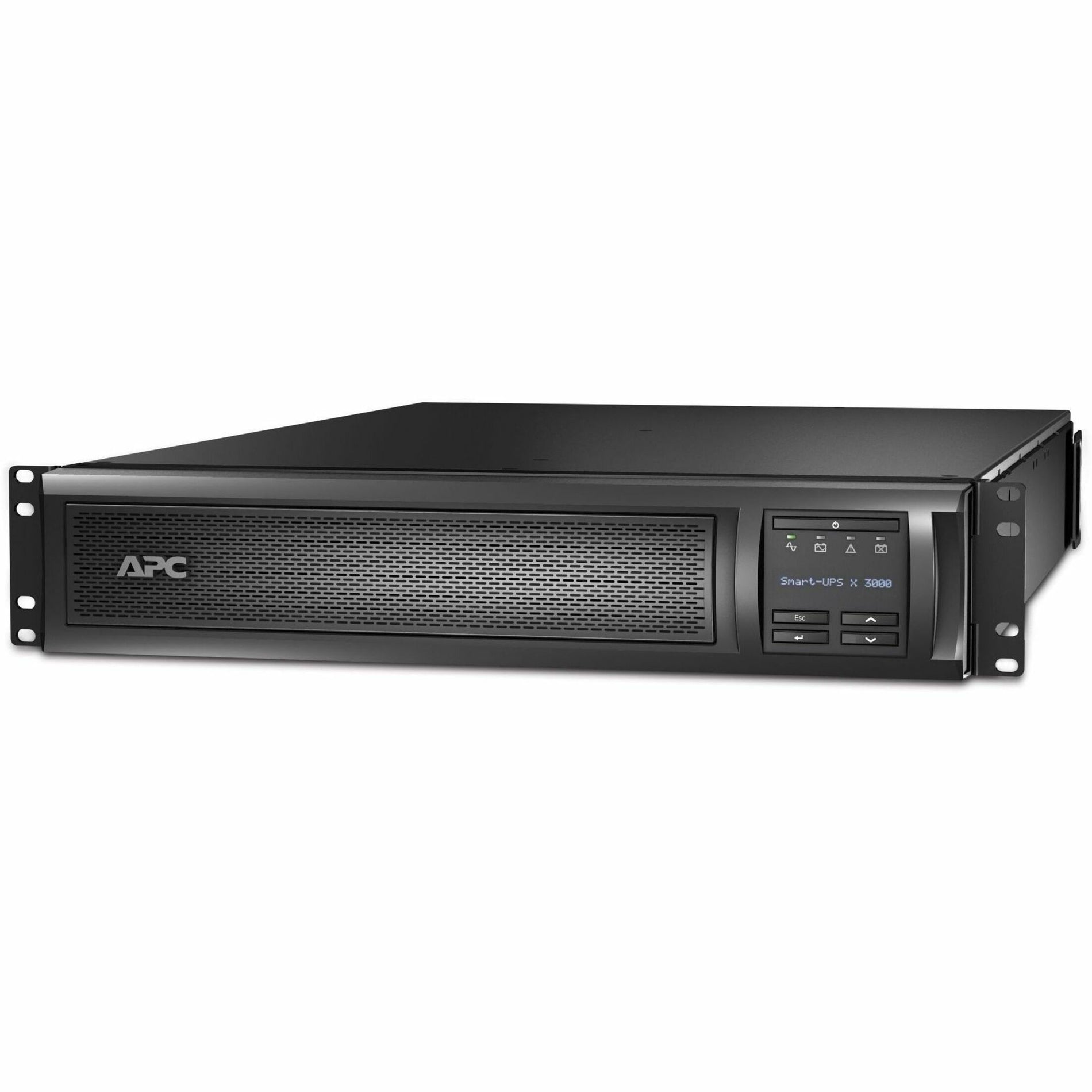

APC Smart-UPS X SMX3000RMLV2UNC 3000VA Rack-Mountable UPS with SNMP Management
The APC Smart-UPS X SMX3000RMLV2UNC delivers enterprise-grade 3000VA/2700W rack-mountable uninterruptible power supply protection with advanced SNMP network management capabilities. This 2U line-interactive UPS features hot-swappable batteries, pure sine wave output, and comprehensive connectivity options including NEMA L5-30P input and multiple outlet configurations. Designed for critical server rooms and data centers, this Smart-UPS X model provides reliable backup power with 6 minutes runtime at full load and 18 minutes at half load, ensuring maximum uptime for your mission-critical equipment.
Enterprise-Grade 3000VA Rack-Mountable UPS Power Protection
The SMX3000RMLV2UNC Smart-UPS X delivers robust 3000VA/2700W power capacity in a compact 2U rack-mountable form factor. This line-interactive UPS system provides superior power conditioning and battery backup for servers, networking equipment, and critical infrastructure components. The unit features a NEMA L5-30P input connector and supports 120V AC input/output voltage with pure sine wave output for sensitive electronic equipment.
Advanced Load Capacity and Power Distribution

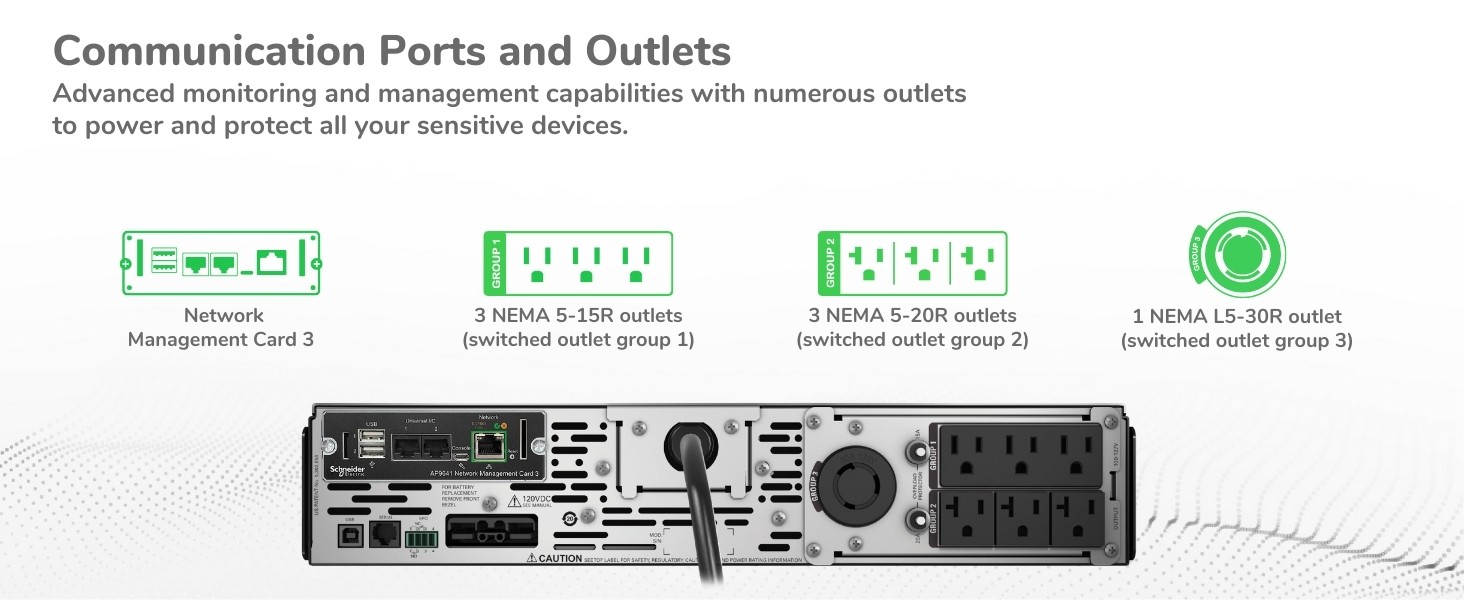

With 2880VA load capacity and 2700W power output, this rack-mountable UPS accommodates demanding server configurations. The unit provides seven battery and surge outlets including three NEMA 5-15R receptacles, three NEMA 5-20R outlets, and one NEMA L5-30R receptacle for flexible power distribution. The 540J surge energy rating protects connected equipment from power spikes and electrical disturbances.

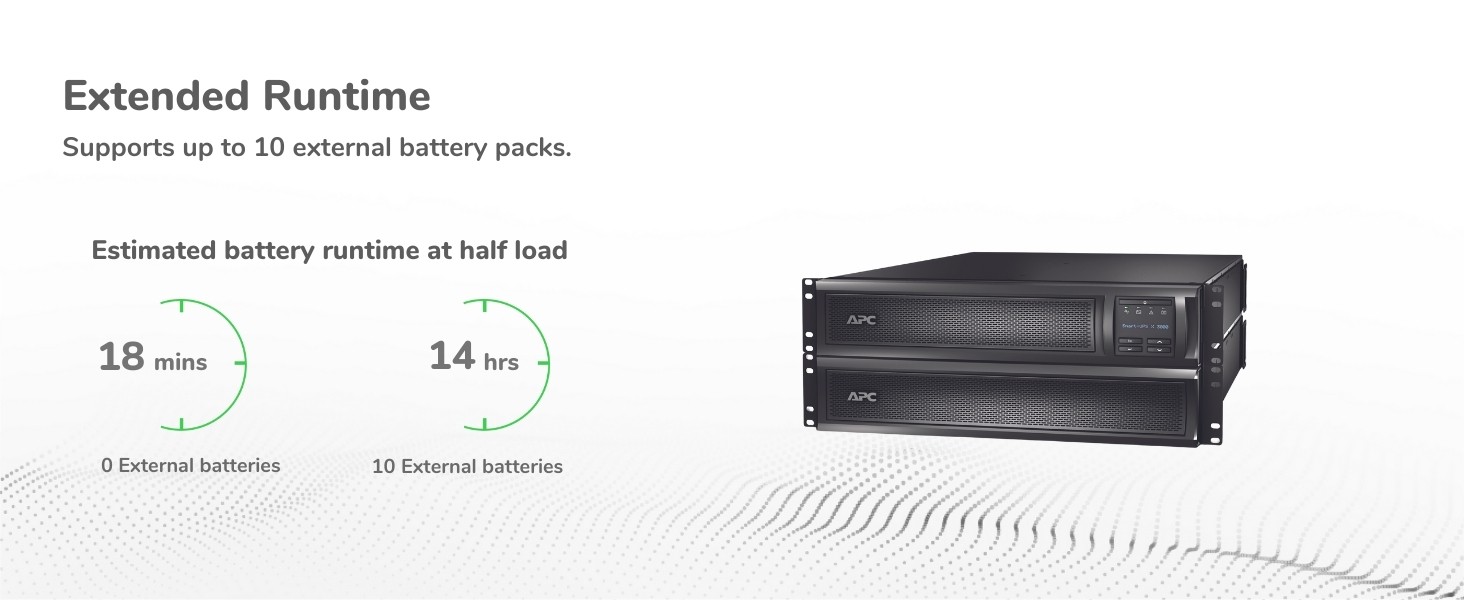

Hot-Swappable Battery Technology with Extended Runtime
The Smart-UPS X features maintenance-free, spill-proof lead-acid batteries with hot-swappable capability for zero-downtime battery replacement. The system delivers 6 minutes of backup power at full 2700W load and extends to 18 minutes at half load, providing sufficient time for graceful system shutdown or generator startup. Battery recharge time is optimized at 3 hours for rapid recovery after power events.
Battery Management and Monitoring
Advanced battery management includes automatic battery testing, temperature compensation, and intelligent charging algorithms to maximize battery life. The hot-swappable design allows for proactive battery maintenance without interrupting critical loads, essential for 24/7 operations in data centers and server rooms.
Runtime Specification | Performance |
---|---|
Full Load Runtime (2700W) | 6 Minutes |
Half Load Runtime (1350W) | 18 Minutes |
Battery Recharge Time | 3 Hours |
Transfer Time | 4 milliseconds |
SNMP Network Management and Remote Monitoring
The included Web/SNMP management card enables comprehensive remote monitoring and management capabilities through network protocols. This Smart-UPS X model supports SNMP management for integration with network management systems, allowing administrators to monitor UPS status, configure settings, and receive alerts remotely. The unit includes both USB and serial connectivity options for local management and configuration.
Emergency Power OFF and Safety Features
Critical safety features include Emergency Power OFF (EPO) functionality for immediate shutdown in emergency situations. The 4-millisecond transfer time ensures seamless transition to battery power without disrupting sensitive equipment operation. The pure sine wave output provides clean power compatible with all types of electronic equipment including servers with active power factor correction.
Rack-Mountable Design with Professional Installation
The 2U rack height design optimizes data center space utilization while providing enterprise-level power protection. Measuring 17" wide by 26.3" deep by 3.3" high and weighing 84.77 pounds, this rack-mountable UPS fits standard 19-inch server racks with front mounting preference and lower mounting location recommendation for optimal weight distribution.
Environmental Compliance and Certifications
This Smart-UPS X model meets stringent environmental standards including RoHS compliance, mercury-free construction, and Green Premium certification. The unit carries multiple safety certifications including BSMI, CSA, NOM, TÜV, and VCCI Class A, ensuring global deployment compatibility and regulatory compliance.
Comprehensive Warranty and Equipment Protection
APC provides a 3-year limited warranty covering repair or replacement (excluding battery) with 2-year battery coverage. The directly connected equipment guarantee offers $150,000 lifetime protection for connected devices, demonstrating confidence in the UPS protection capabilities. Optional extended warranties and on-site service options are available for enhanced support coverage.
Complete Package Contents
- Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Web/SNMP management card
