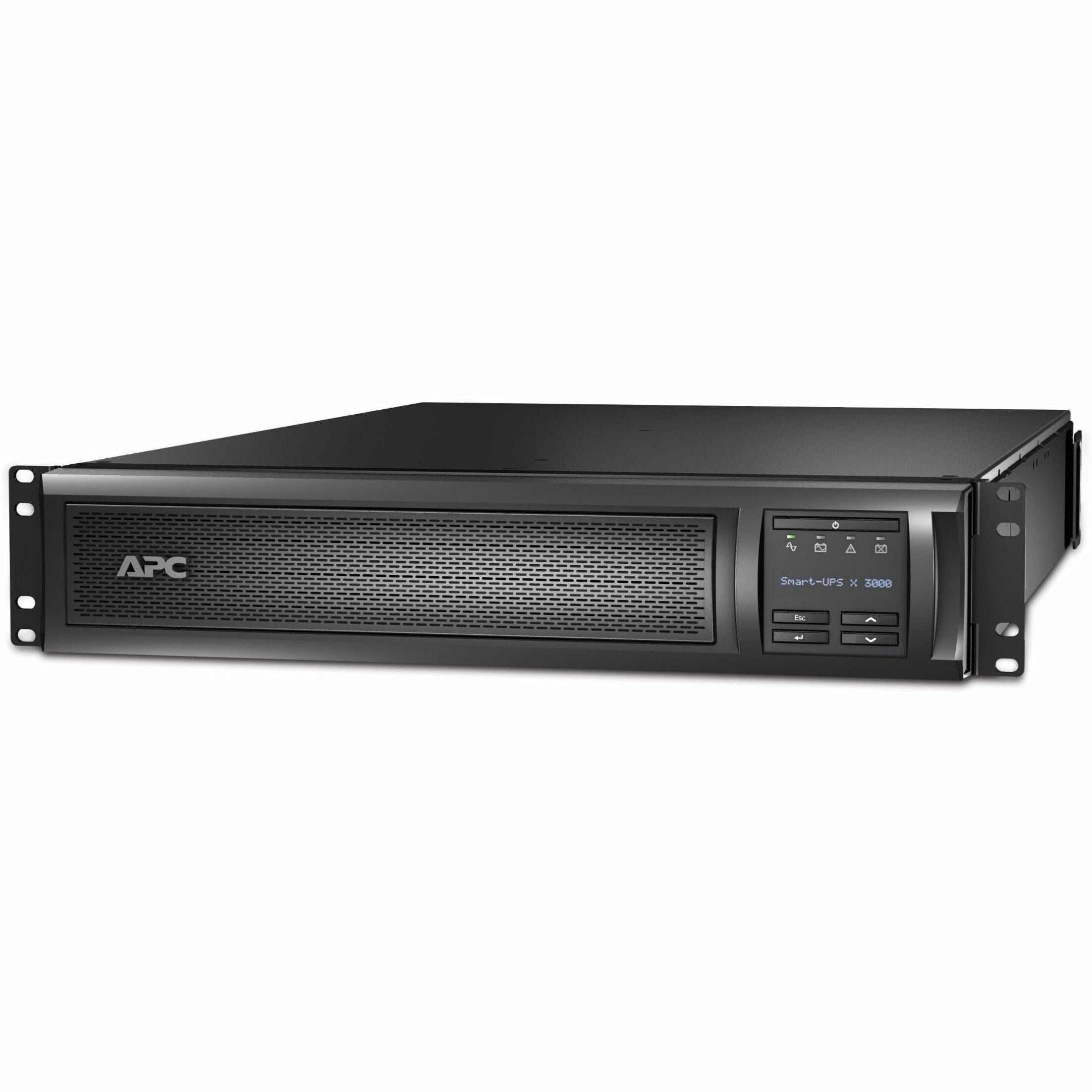

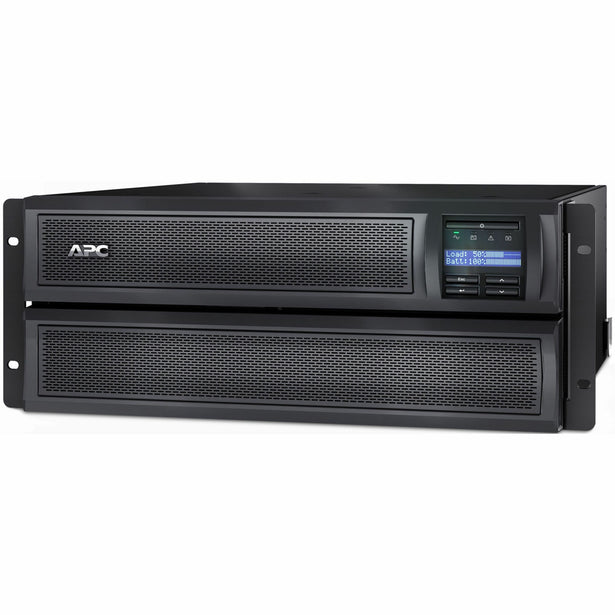

APC by Schneider Electric SMX3000HVT

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. APC SMX3000HVT 3000VA Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

APC by Schneider Electric SMX3000HVT Tech Specs

General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SMX3000HVT
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:X
Product Name:Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:SCHUKO CEE 7 EU1-16P
British BS1363A
IEC 60320 C20
Receptacle Type:IEC 60320 C13
NEMA L6-20R
IEC 60320 C19
Receptacle Detail:2 x NEMA L6-20R
2 x IEC 60320 C19
4 x IEC 60320 C13
Protection Type:Surge
Emergency Power OFF:Yes
Cord Length:6 ft
Power Description
Load Capacity:3000 VA/2700 W
Input Voltage:208 V AC
Output Voltage:208 V AC
Waveform Type:Sine Wave
Surge Energy Rating:645 J
Circuit Breaker:Yes
Management
Alarm:Low Battery
On Battery
Configurable Delay
Controls/Indicators
Status Indicators:LED status display with On Line : On Battery : Replace Battery and Overload indicators
Interfaces/Ports
Serial Port:Yes
USB:Yes
Total Number of Expansion Slots:1
Battery Information
Number of Batteries:1
Battery Characteristics:Maintenance-free, Sealed, Spill-proof
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):6.30 Minute
Backup/Run Time (Half Load):15.70 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):55 dB(A)
Thermal Dissipation:53.93 W
Physical Characteristics
Product Color:Black
Height:17"
Width:7"
Depth:19"
Rack Height:4U
Form Factor:Rack-mountable
Weight (Approximate):85 lb
Miscellaneous
Package Contents:
  • Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
  • Certifications & Standards:
    • C-tick
    • CE
    • CSA
    • EN 50091-1
    • EN 50091-2
    • EN 60950
    • FCC Part 15 Class A
    • GOST
    • IRAM
    • UL 1778
    • VDE
    • UL 1449
    Environmentally Friendly:Yes
    Environmental Certification:REACH
    RoHS
    Warranty
    Limited Warranty:3 Year
