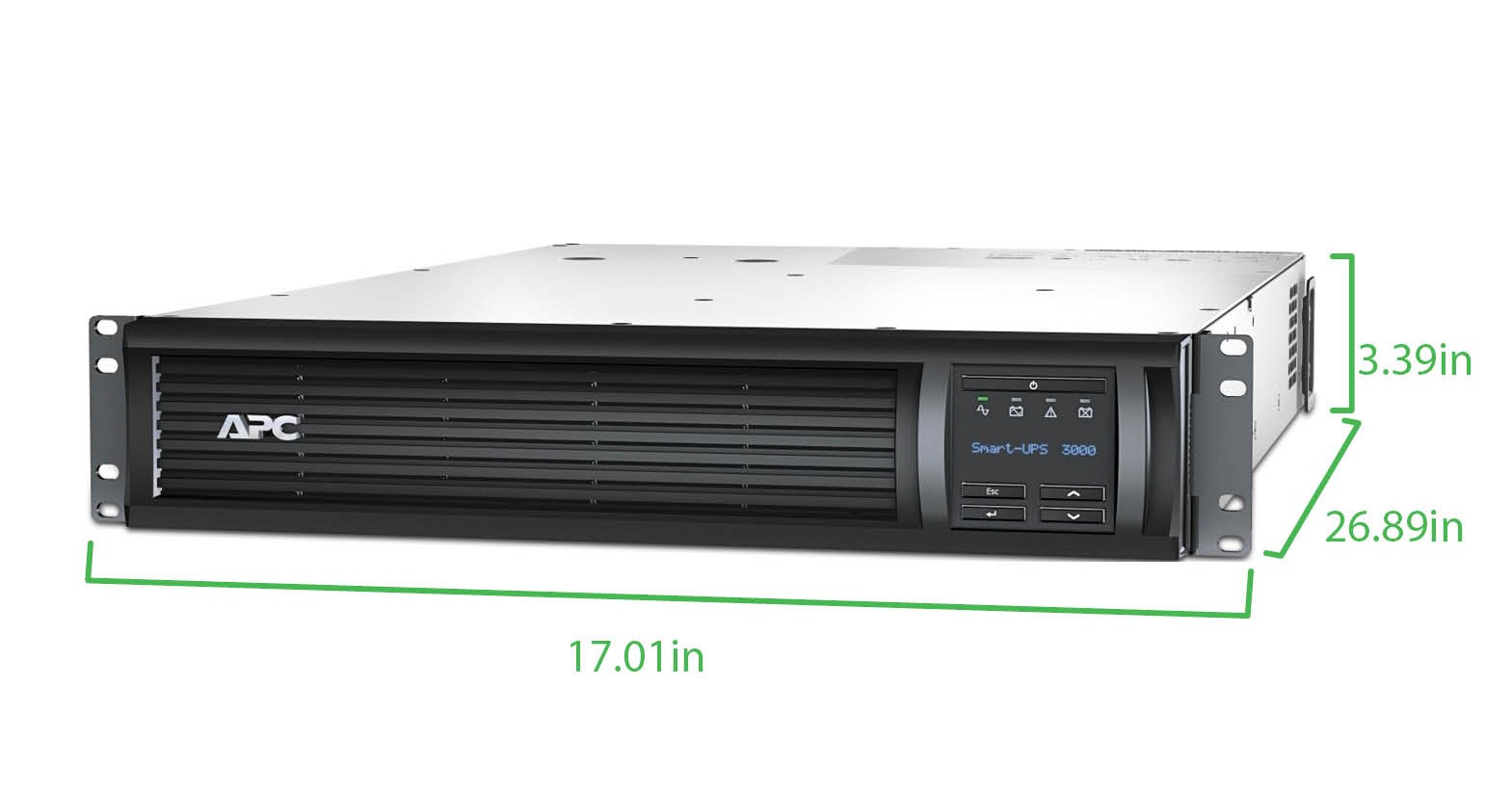

Front view of APC SMT3000RM2UC Smart-UPS 3000VA LCD rack mount UPS showing LCD display and ventilation grills

Enterprise-Grade Power Protection in 2U Design

The APC Smart-UPS 3000VA showcases advanced power management in a space-efficient 2U rack-mount form factor. The sleek black chassis features an intuitive LCD interface that provides real-time status monitoring and control. With 2880VA/2700W capacity, this UPS delivers reliable power protection for critical network infrastructure.

Technical Specifications

  • 2U rack-mount design optimized for standard 19-inch racks
  • LCD interface with clear status indicators and controls
  • 2880VA/2700W power capacity for high-density deployments

Applications

  • Data center rack power protection
  • Network infrastructure backup power
  • Server room power management
Close-up view of APC Smart-UPS LCD display panel showing power status and control buttons

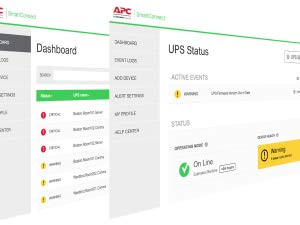

Intelligent Power Management Interface

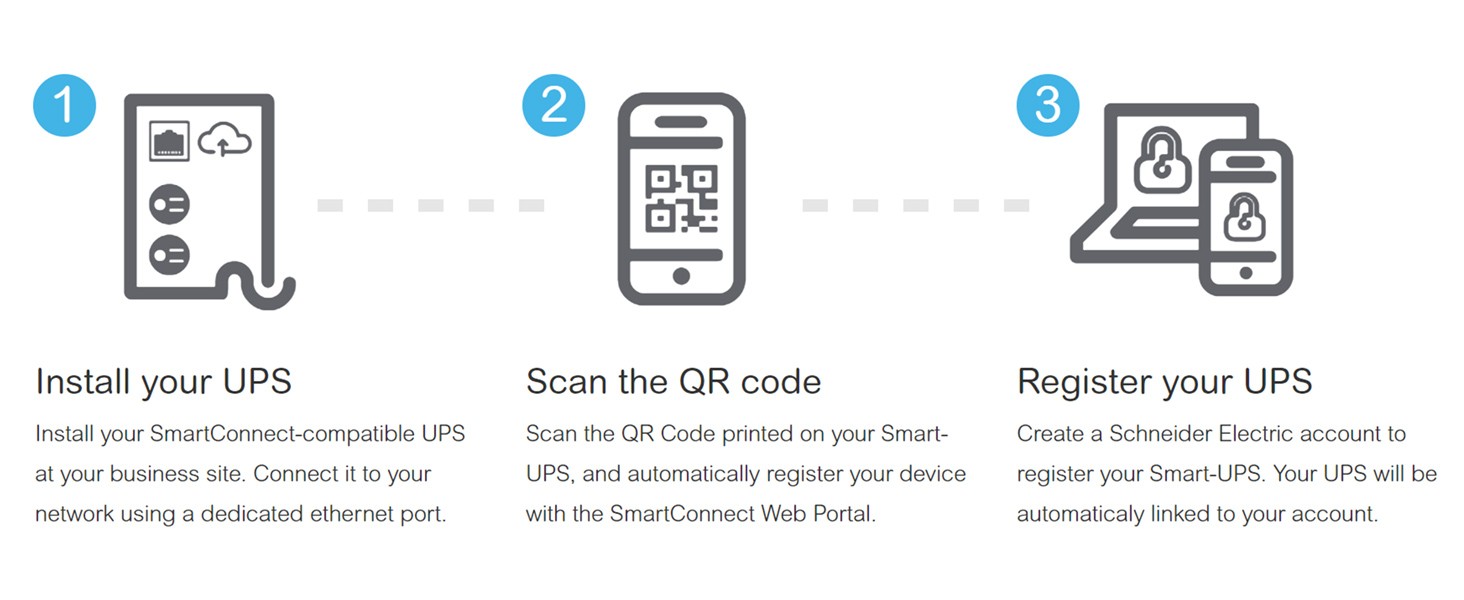

The integrated SmartConnect interface provides comprehensive power monitoring and management capabilities. The high-contrast LCD display delivers critical information at a glance, while the intuitive control panel enables easy configuration and operation. This intelligent design ensures optimal power protection for your mission-critical equipment.

Technical Specifications

  • SmartConnect remote monitoring capability
  • Multi-function LCD status display
  • Intuitive navigation controls

Applications

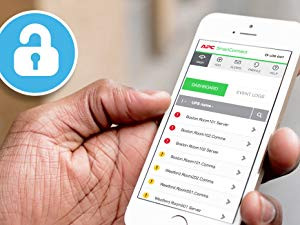

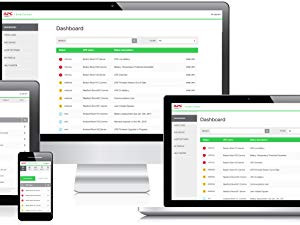

  • Remote power monitoring
  • System status verification
  • Power configuration management
Detailed view of APC Smart-UPS ventilation system and chassis design

Efficient Thermal Management Design

The carefully engineered ventilation system ensures optimal thermal performance while maintaining reliability. The horizontal gill design maximizes airflow while the robust construction ensures durability in demanding rack environments. This thoughtful design helps maintain optimal operating temperatures for enhanced battery life and system reliability.

Technical Specifications

  • Advanced thermal management system
  • High-efficiency ventilation design
  • Durable metal chassis construction

Applications

  • High-temperature environment deployment
  • Continuous operation scenarios
  • Dense rack installations

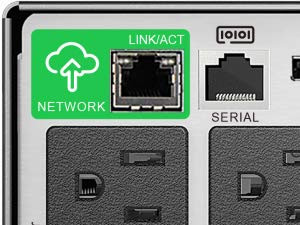

Rear view of APC Smart-UPS showing power outlets, communication ports, and connection options

Comprehensive Connectivity Options

The rear panel provides extensive connectivity options including multiple outlet types and communication ports. With 8 power outlets and advanced management interfaces, this UPS offers flexible integration options for diverse IT infrastructure needs. The clear layout ensures easy access and cable management.

Technical Specifications

  • 8 power outlets (NEMA 5-15R and 5-20R)
  • USB and serial communication ports
  • Network management card slot

Applications

  • Mixed voltage equipment deployment
  • Network infrastructure protection
  • Remote management integration
Close-up of APC Smart-UPS LCD screen showing power metrics and system status

Real-Time Monitoring Display

The high-resolution LCD screen provides detailed power metrics and system status information. Users can easily monitor load levels, battery charge, and operational parameters. The clear visual feedback ensures optimal power management and system performance monitoring.

Technical Specifications

  • Detailed power load monitoring
  • Battery status indicators
  • System performance metrics

Applications

  • Power consumption tracking
  • Battery health monitoring
  • System diagnostics

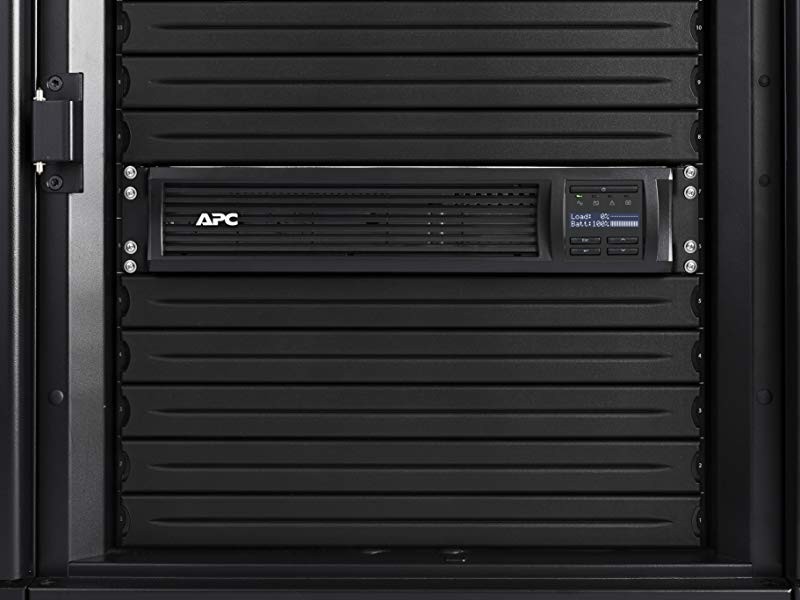

APC Smart-UPS installed in server rack showing mounting system and integration

Rack Integration Excellence

Designed for seamless integration into standard server racks, this UPS maintains professional aesthetics while delivering superior functionality. The secure mounting system and balanced weight distribution ensure stable installation, while the compact form factor optimizes valuable rack space.

Technical Specifications

  • Standard 19-inch rack compatibility
  • Secure mounting system
  • Optimized weight distribution

Applications

  • Professional rack deployment
  • Data center installation
  • IT infrastructure integration

Product details

General Information
Manufacturer

Schneider Electric SA

Manufacturer Part Number

SMT3000RM2UC

Brand Name

APC by Schneider Electric

Product Line

Smart-UPS

Product Name

Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect

Product Type

Line-interactive UPS

Technical Information
Plug/Connector Type

NEMA L5-30P

Receptacle Type

NEMA 5-20R
NEMA 5-15R

Receptacle Detail

2 x NEMA 5-20R
6 x NEMA 5-15R

Number of Battery & Surge Outlets

8

Transfer Time

10 ms

Power Description
Load Capacity

2880 VA/2700 W

Input Voltage

120 V AC

Input Voltage Range

75 V AC - 154 V AC

Output Voltage

120 V AC

Waveform Type

Sine Wave

Battery Information
Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

2.80 Minute

Typical Battery Recharge Time

3 Hour

Hot Swappable

Yes

Physical Characteristics
Product Color

Black

Height

3.4

Width

18.9

Depth

26.9

Rack Height

2U

Form Factor

Rack-mountable

Weight (Approximate)

93.42 lb

Miscellaneous
Package Contents

  • Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect
  • Documentation CD
  • Installation guide
  • Rack mounting hardware
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Energy Star

    Yes

    Environmentally Friendly

    Yes

    Warranty
    Limited Warranty

    3 Year

    FAQs

    What is the power capacity of the APC SMT3000RM2UC Smart-UPS?
    The APC SMT3000RM2UC Smart-UPS has a load capacity of 2880 VA/2700 W, making it suitable for powering multiple servers, network devices, and critical equipment. It operates on 120V AC input and provides pure sine wave output for optimal compatibility with sensitive electronics.
    How long does the battery backup last at full load?
    At full load, the APC SMT3000RM2UC provides 2.80 minutes of backup time. The battery recharges to full capacity within 3 hours. The unit features hot-swappable batteries, allowing for battery replacement without powering down connected equipment.
    What types of outlets does this UPS provide?
    This Smart-UPS features 8 battery backup and surge protection outlets in total: 2 NEMA 5-20R outlets and 6 NEMA 5-15R outlets. The unit connects to power via a NEMA L5-30P input plug, providing flexible connectivity options for various devices and equipment.
    What are the physical dimensions and mounting options?
    The APC SMT3000RM2UC is a 2U rack-mountable unit measuring 3.4" height x 18.9" width x 26.9" depth. It weighs approximately 93.42 lbs and comes in black. The package includes rack mounting hardware and support rails for easy installation in standard server racks.
    What is the input voltage range and transfer time?
    This UPS operates with an input voltage range of 75V AC to 154V AC, centered on 120V AC. It features a fast transfer time of 10 ms when switching to battery power, ensuring connected equipment remains protected during power fluctuations.
