Rear view of APC Smart-UPS 2200VA showing power outlets, network card, and connectivity ports

Comprehensive Connectivity and Output Options

The rear panel demonstrates the unit's extensive connectivity options and output versatility. With integrated network management capabilities through the AP9631 card, this UPS enables remote monitoring and control. The thoughtfully arranged outlet groups and multiple connection interfaces ensure flexible deployment options while maintaining clean cable management.

Technical Specifications

  • 8 total outlets (6 x NEMA 5-15R, 2 x NEMA 5-20R)
  • Built-in AP9631 network management card
  • USB and serial connectivity options

Applications

  • Remote power management
  • Mixed voltage equipment support
  • Structured cabling installations
Close-up view of APC Smart-UPS LCD display showing power and battery status information

Intelligent LCD Interface for Real-Time Monitoring

The high-resolution LCD display provides instant access to critical UPS metrics and settings. Users can monitor load levels, battery status, and operational parameters with crystal-clear visibility. The intuitive interface enables quick navigation through settings and diagnostics, ensuring optimal power management and system health monitoring.

Technical Specifications

  • Multi-function LCD with backlight
  • Real-time load and battery monitoring
  • Intuitive navigation interface

Applications

  • Power status monitoring
  • System diagnostics
  • Configuration management
APC Smart-UPS mounted in rack cabinet showing installation profile and display accessibility

Seamless Rack Integration Design

Shown installed in a rack environment, the Smart-UPS demonstrates its optimal integration capabilities. The 2U form factor efficiently utilizes vertical rack space while providing easy access to the display and controls. The robust mounting solution ensures stable installation and reliable operation in any standard 19-inch rack enclosure.

Technical Specifications

  • Standard 19-inch rack compatibility
  • Secure mounting system
  • Tool-less rail kit installation

Applications

  • Data center deployment
  • Network closet installation
  • Infrastructure expansion

Product details

General Information
Manufacturer

Schneider Electric SA

Manufacturer Part Number

SMT2200RM2UNC

Brand Name

APC by Schneider Electric

Product Line

Smart-UPS

Product Name

Smart-UPS 2200VA LCD RM 2U 120V with Network Card

Product Type

Line-interactive UPS

Technical Information
Receptacle Type

NEMA 5-15R
NEMA 5-20R

Receptacle Detail

6 x NEMA 5-15R
2 x NEMA 5-20R

Number of Battery & Surge Outlets

8

Transfer Time

4 ms

Application/Usage

Server
POS Terminal
Network Router
Network Hub
Network Switch

Power Description
Load Capacity

1920 VA/1920 W

Input Voltage

120 V AC

Output Voltage

120 V AC

Waveform Type

Sine Wave

Battery Information
Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

5 Minute

Typical Battery Recharge Time

3 Hour

Physical Characteristics
Product Color

Black

Height

3.4

Width

18.9

Depth

26.9

Rack Height

2U

Form Factor

Rack-mountable

Weight (Approximate)

93.28 lb

Miscellaneous
Package Contents

  • Smart-UPS 2200VA LCD RM 2U 120V with Network Card
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Energy Star

    Yes

    Environmentally Friendly

    Yes

    Environmental Certification

    REACH
    RoHS

    Warranty
    Limited Warranty

    3 Year

    FAQs

    What is the power capacity of the APC SMT2200RM2UNC Smart-UPS?
    The APC SMT2200RM2UNC Smart-UPS has a load capacity of 1920 VA/1920 W, providing sufficient power protection for servers, network equipment, and other critical devices. It delivers pure sine wave output at 120V AC, making it ideal for sensitive electronic equipment.
    How many outlets does this UPS provide and what types are they?
    This Smart-UPS features 8 total battery backup and surge protection outlets, consisting of 6 NEMA 5-15R outlets and 2 NEMA 5-20R outlets. This configuration provides flexible power distribution for various IT equipment and devices.
    What is the backup runtime for this UPS system?
    The APC SMT2200RM2UNC provides 5 minutes of backup time at full load (1920W). The battery recharge time is approximately 3 hours to return to full capacity. This runtime is suitable for graceful equipment shutdown or bridging short power interruptions.
    What are the physical dimensions and mounting options?
    This UPS is designed for 2U rack mounting with dimensions of 3.4" height x 18.9" width x 26.9" depth. It weighs approximately 93.28 lbs and comes with rack mounting brackets and support rails. The black rack-mountable form factor makes it ideal for server room installations.
    What type of network connectivity does this UPS include?
    The SMT2200RM2UNC comes with a built-in network card for remote management. It includes both USB and RS-232 signaling cables for direct connection to servers. This allows for comprehensive power monitoring and management across your network infrastructure.

    Didn’t find your answer?

    Don't hestitate to contact us

    Compare Similar Products

    Specification
    APC Smart-UPS SMT2200RM2UNC Line-interactive UPS, 2200VA/1920W, LCD, Network Card, Rack Mount 2U, 8 Outlets, Sine Wave, Energy Star, Black - SMT2200RM2UNC (3 Year Warranty)
    APC Smart-UPS SMT2200RM2UNC Line-interactive UP...
    APC Smart-UPS SMT2200RM2U 2200VA Rack-mountable UPS
    APC Smart-UPS SMT2200RM2U 2200VA Rack-mountable...

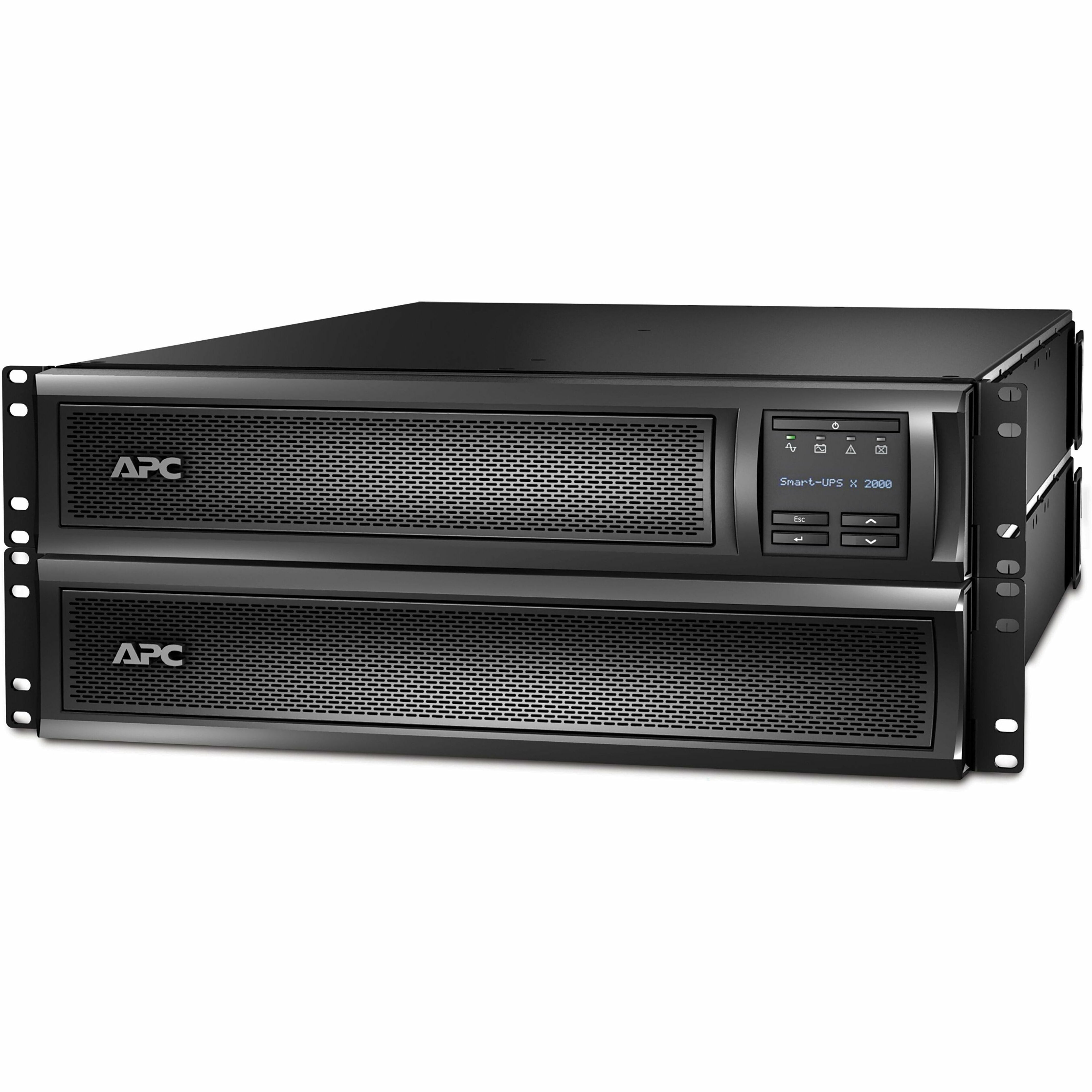

    APC Smart-UPS X SMX2000RMLV2U 1920VA/1800W Rack-mountable Line-interactive UPS, Hot Swappable Battery, 2U Black - SMX2000RMLV2U (3 Year Warranty)
