APC

AP7998B

ⓘ

AUTHORIZED
PARTNER

$1,989.99 $2,715.49

APC by Schneider Electric Switched Zero U Rack PDU, 12.5kW 208V, 21 C13 & 3 C19 Outlets, Overload Protection, Remote Power Control, RoHS Compliant - AP7998B (2 Year Warranty)

Name: APC by Schneider Electric Switched Zero U Rack PDU, 12.5kW 208V, 21 C13 & 3 C19 Outlets, Overload Protection, Remote Power Control, RoHS Compliant - AP7998B (2 Year Warranty)
Brand: APC
SKU: AP7998B
Price: 1989.99 USD
Availability: InStock

Brand New

FREE Returns

Output Voltage:

100VAC,120VAC See available options
120VAC See available options
120VAC,208VAC See available options
120VAC,208VAC,230VAC See available options
200VAC,208VAC See available options
200VAC,208VAC,230VAC See available options
208VAC See available options
230VAC See available options
240VAC See available options

Product variants

12.5kW

Power Rating

24 Outlets

C13 & C19

Zero U

Rack Mount

Three Phase

208V Output

Remote Control

Switched PDU

Overload

Protection

Hurry, only 2 items left in stock!

Share:

Share

Need help?

Order in the next

--

hrs

--

mins

to be delivered on Thursday, Jul 10

Ask Our Experts

Live Chat Send Message

Call Us

888.267.9566

Pairs well with

In stock! Ships within 1-2 business days.

30 days Free Return

Complimentary shipping & returns

Limited warranty: 2 Year

Downloads

User Manual PDF Document

Product Datasheet PDF Document

Key Features

⚡ 12.5kW Three Phase Switched PDU with advanced load monitoring
🔌 21 x C13 and 3 x C19 IEC outlets with remote power control
📊 Real-time power monitoring with user-defined overload alarms
🌡️ Includes temperature/humidity sensor port
🔒 Secure access via Web, SNMP, CLI, or Telnet interfaces
⚙️ Zero U form factor for space-efficient rack mounting
🔄 Power sequencing capability for controlled equipment startup
🛡️ Built-in overload protection
📏 70" height with 10-foot power cord
♻️ RoHS certified environmentally friendly design

APC by Schneider Electric S...

$1,989.99 $2,715.49

Product details

General Information

Manufacturer

Schneider Electric SA

Manufacturer Part Number

AP7998B

Brand Name

APC by Schneider Electric

Product Name

Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord

Product Type

PDU

Technical Information

PDU Type

Switched

Phase

Three Phase

Plug/Connector Type

CS8365

Receptacle Type

IEC 60320 C19
IEC 60320 C13

Receptacle Detail

21 x IEC 60320 C13
3 x IEC 60320 C19

Protection Type

Overload Protection

Power Description

Input Voltage

230 V AC

Output Voltage

208 V AC

Power Rating (Watt)

12.50 kW

Input Current

50 A

Physical Characteristics

Mount Type

Rack-mountable

Rack Height

0U

Height

70

Width

2.2

Depth

3.5

Weight (Approximate)

21.28 lb

Miscellaneous

Package Contents

Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord

Cord retention bracket(s)

Documentation CD

Installation guide

Rack mounting brackets

RS-232 configuration cable

Toolless mounting kit

Environmentally Friendly

Yes

Environmental Certification

RoHS

Warranty

Limited Warranty

2 Year

Included in the Box

Rack PDU
Cord Retention Brackets
Documentation CD
Installation Guide
Rack Mounting Brackets
RS-232 Cable
Toolless Mounting Kit

Accessories

Save 11%

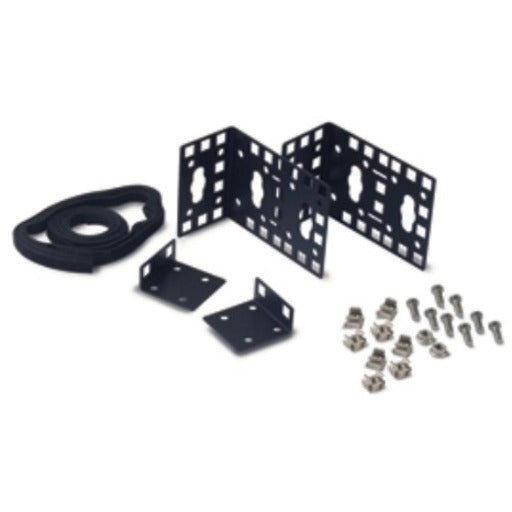

APC AR7711 mounting bracket kit components including mounting plates, straps, and installation hardware-alternate-image1

APC

APC by Schneider Electric AR7711 Mounting Bracket, 0U Rack Space, PDU Compatible, ...

$129.99 $146.85

0U Space

Rack Efficient

PDU Mount

Power Compatible

0.51 lb

Lightweight

RoHS

Compliant

Multi Mount

Versatile Install

NetShelter SX

Compatible

Save 17%

APC

APC WEXWAR1Y-AC-04 Extended Warranty for APC (1) Accessory (Renewal or High Volume...

$241.49 $290.49

FAQs

What are the key features of the APC AP7998B Rack PDU?

The APC AP7998B is a switched rack PDU with 12.5kW capacity at 208V, featuring 21 C13 outlets and 3 C19 outlets with a 10' power cord. Key features include remote outlet-level control, power sequencing capabilities, real-time load monitoring, and user-defined alarms. It supports secure access through Web, SNMP, CLI, or Telnet interfaces and includes temperature/humidity sensor ports and locking IEC receptacles.

What are the power specifications of this PDU?

The APC AP7998B operates with an input voltage of 230V AC and outputs 208V AC, delivering a power rating of 12.5kW. It's a three-phase PDU with a 50A input current capacity. The unit comes with a CS8365 plug type and provides comprehensive overload protection for connected equipment.

How many outlets does the AP7998B PDU provide and what types are they?

The AP7998B PDU provides a total of 24 outlets: 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets. All outlets feature locking receptacles for secure connections, helping prevent accidental disconnections in the data center environment.

What are the mounting specifications and physical dimensions?

This PDU is designed for Zero U (0U) rack mounting, meaning it mounts vertically in the rack's rear channel without consuming any rack units. The physical dimensions are 70" in height, 2.2" in width, and 3.5" in depth, with a weight of approximately 21.28 lbs. It includes toolless mounting hardware and rack mounting brackets for easy installation.

What management and monitoring capabilities does this PDU offer?

The AP7998B offers advanced management capabilities including remote outlet-level control, power cycling functionality, delayed power sequencing, and real-time load monitoring. It can be managed through secure Web interface, SNMP, Command Line Interface, or Telnet, and integrates with StruxureWare Data Center Expert platforms for centralized management.
