EKI-1522-CE
Advantech EKI-1522-CE 2-Port Serial Device Server, RS-232/422/485, Fast Ethernet Network, Twisted Pair, DIN Rail/Wall Mount, RoHS Compliant - EKI-1522-CE (5 Year Warranty)
FREE Returns
2 Serial
RS-232/422/485
10/100Base-TX
3.2W
DIN/Wall
1.04 lb
--
hrs--
mins
Pairs well with
In stock! Ships within 1-2 business days.
30 days Free Return
Complimentary shipping & returns
Limited warranty: 5 Year
Key Features
- 🔌 2 independent Ethernet ports with redundant network mechanism
- 🔄 Supports RS-232/422/485 serial connections
- 🌐 Fast Ethernet with 10/100Base-TX standard
- 💻 Multiple operation modes: COM port redirection, TCP Server/Client, UDP
- 🏭 DIN Rail and Wall mounting options
- ⚡ Low power consumption at 3.20W
- 🛡️ Comprehensive certifications: CE, FCC, EMC, EMI, EMS
- ♻️ RoHS compliant and environmentally friendly
- ⚖️ Compact size: 5.5" x 1.4" x 3.7"
- ✅ 5-year warranty coverage
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for domestic (US)
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
EKI-1522-CE
Brand Name
Advantech
Product Model
EKI-1522
Product Name
2-port RS-232/422/485 Serial Device Server
Packaged Quantity
1
Product Type
Device Server
Media & Performance
Media Type Supported
Twisted Pair
Network & Communication
Ethernet Technology
Fast Ethernet
Network Standard
10/100Base-TX
Interfaces/Ports
Network (RJ-45)
Yes
Serial Port
Yes
Number of Network (RJ-45) Ports
2
Number of Serial Ports
2
Power Description
Power Consumption
3.20 W
Physical Characteristics
Form Factor
DIN Rail Mountable
Wall Mountable
Height
5.5
Width
1.4
Depth
3.7
Weight (Approximate)
1.04 lb
Miscellaneous
Certifications & Standards
- EMC: CE, FCC
- EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
- EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
- Freefall: IEC 60068-2-32
- Safety: UL 60950-1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Environmentally Friendly
Yes
Environmental Certification
RoHS
Country of Origin
Taiwan
Warranty
Limited Warranty
5 Year
Included in the Box
Device Server
DIN Rail Mount
Wall Mount
Similar Products
Serial Ports
10/100 Mbps
RS-232/422/485
DIN/Wall
3.2W
1.06 lb
10/100Base-TX
2x RJ-45
1-Port Serial
1.04 lb
Rail/Wall
Eco-Friendly
FAQs
What are the main features of the Advantech EKI-1522-CE Serial Device Server?
What mounting options are available for the EKI-1522-CE?
What types of serial connections does the EKI-1522-CE support?
What certifications and standards does the EKI-1522-CE comply with?
How does the network redundancy feature work in the EKI-1522-CE?
Compare Similar Products
| Specification |
Advantech EKI-1522-CE 2-Port Serial Device Serv...
|
Thinklogical SCS320R Console Server
|

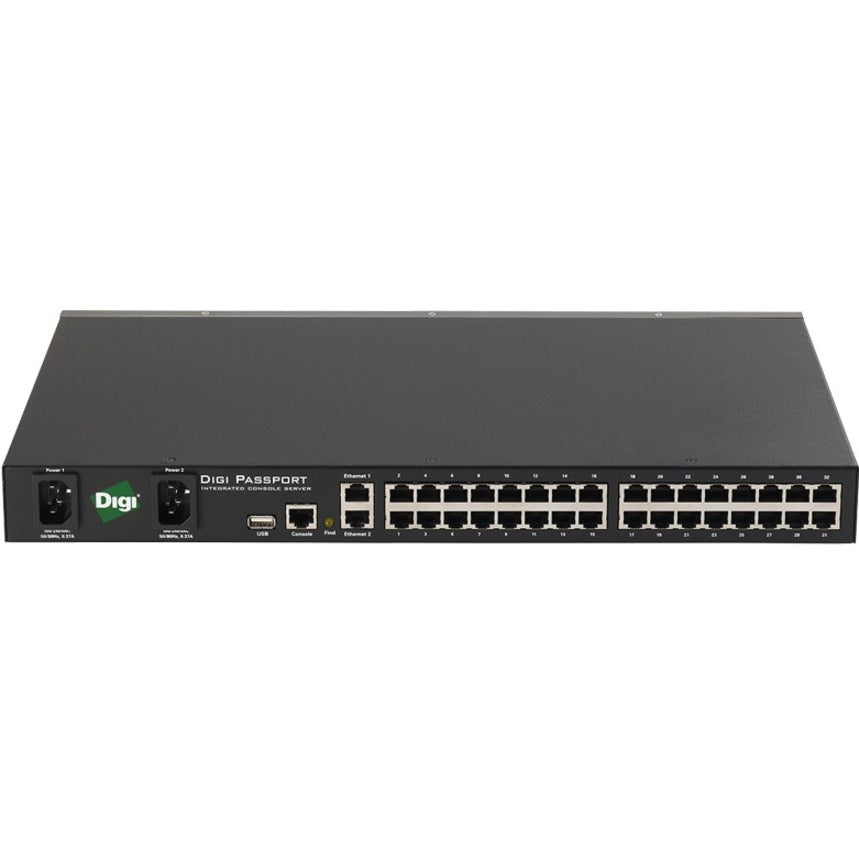

Digi Passport 48 Dual AC Power with Modem (Inte...
|
