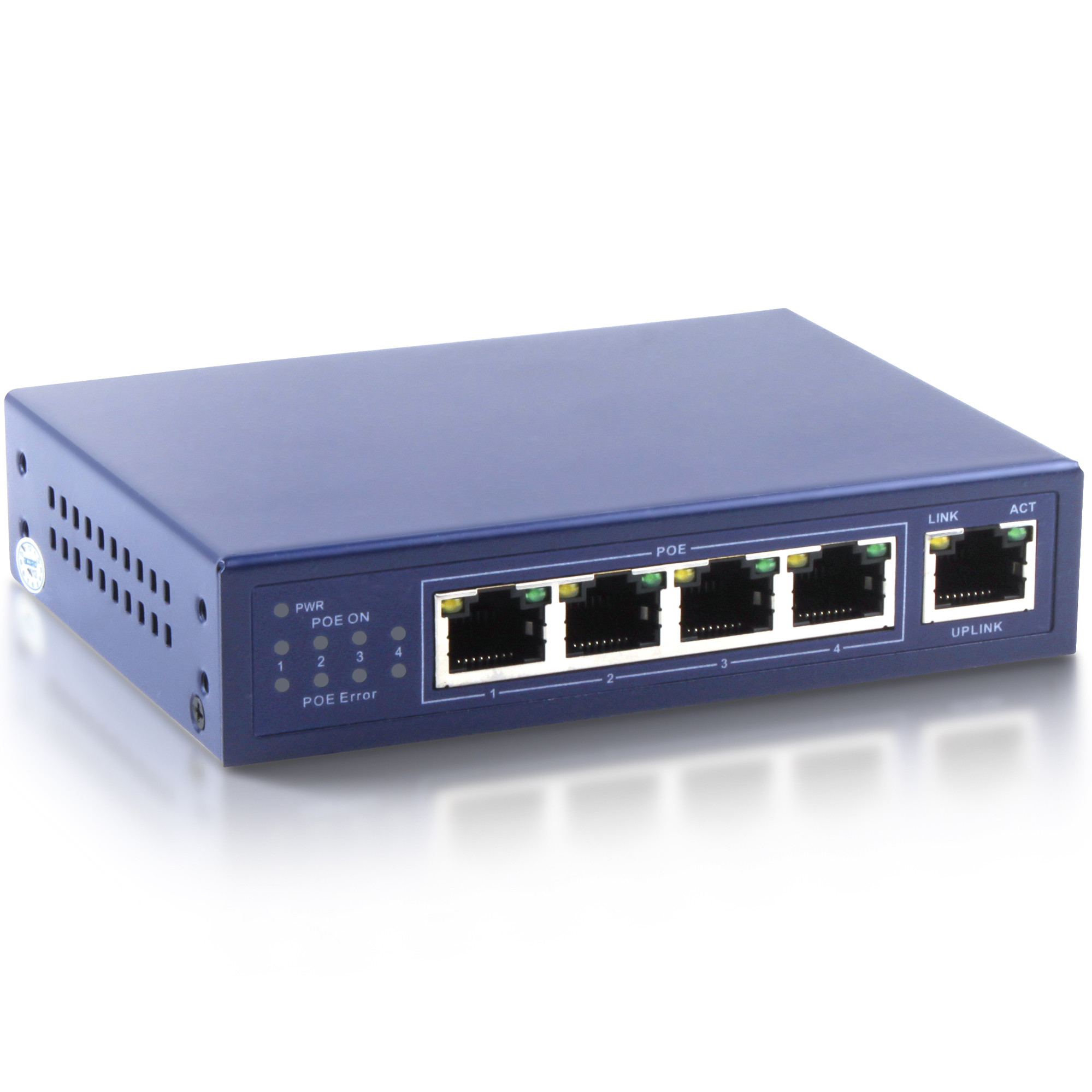

4XEM 4XLS5004P 4-Port PoE+ Switch - 10/100Mbps Fast Ethernet Network Switch with Power Supply
The 4XEM 4XLS5004P 4-Port PoE+ Ethernet Switch delivers professional-grade networking performance for small to medium business environments. This compact desktop ethernet switch combines four 10/100Mbps PoE+ ports with one uplink port, providing seamless network expansion and power delivery in a single device. Built to IEEE 802.3af/at standards, this fast ethernet network switch offers reliable power over ethernet functionality while maintaining exceptional data transfer speeds and energy efficiency.
Advanced PoE+ Technology and Fast Ethernet Performance
The 4XLS5004P ethernet switch features four dedicated PoE+ (Power over Ethernet Plus) ports that comply with IEEE 802.3af and IEEE 802.3at standards. Each RJ-45 port delivers both data connectivity and power supply to connected devices, eliminating the need for separate power adapters. The switch supports 10/100Base-TX network technology with twisted pair Category 5 cable compatibility, ensuring reliable fast ethernet connections across your network infrastructure.
High-Performance Network Switching Capabilities
With a total bandwidth capacity of 1.0 Gbps and an impressive packet forwarding rate of 744K packets per second, this 4-port ethernet switch ensures smooth data traffic flow. The Layer 2 switching functionality provides efficient network management with a 2K address database size, making it ideal for small office networks and IP camera installations requiring consistent power delivery and data transmission.
Comprehensive LED Monitoring and Network Management
The 4XEM PoE switch includes intelligent LED indicators for comprehensive network monitoring. System power and PoE maximum power status are clearly displayed, while individual port LEDs show link/activity status, connection speed, PoE activity, and PoE error conditions. This visual monitoring system enables quick troubleshooting and ensures optimal performance of connected powered devices like IP cameras, wireless access points, and VoIP phones.
Energy-Efficient Design with 65W Power Consumption
Operating with just 65W total power consumption, this desktop ethernet switch provides excellent energy efficiency while delivering robust PoE+ power to connected devices. The AC 100-240V power input compatibility ensures global deployment flexibility, while the compact form factor weighing only 10.58 oz makes it perfect for desktop installation in space-constrained environments.
IEEE Standards Compliance and Certification
The 4XLS5004P maintains strict adherence to industry standards including IEEE 802.3i for 10BASE-T, IEEE 802.3u for 100BASE-TX, IEEE 802.3x for flow control, and IEEE 802.3af/at for PoE PSE functionality. Additional certifications include CE Mark, FCC Part 15 Class B, and VCCI Class B compliance, ensuring electromagnetic compatibility and safety standards for professional network deployments.
Technical Specifications
| Feature | Specification |
|---|---|
| Network Ports | 4 x PoE+ RJ-45 + 1 x Uplink |
| Ethernet Technology | Fast Ethernet 10/100Base-TX |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Bandwidth | 1.0 Gbps |
| Packet Forwarding Rate | 744K pps |
| Power Consumption | 65W |
| Form Factor | Desktop (10.58 oz) |
| Warranty | 1 Year Limited |
Complete Package Contents and Installation
The 4XEM 4XLS5004P ethernet switch package includes everything needed for immediate deployment: the 4-port PoE+ switch unit, DC power adapter, power cord, and comprehensive user manual. The plug-and-play installation process requires no complex configuration, making it ideal for businesses seeking quick network expansion with power over ethernet capabilities.
