WS-C6509
€731,95

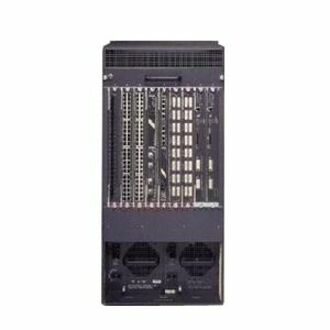

Cisco Catalyst 6509 Ethernet Switch, 9-Slot Expandable, Redundant Power Supply, Fast Failover, Supports Multiple Modules, Gigabit & 10GbE Compatible - WS-C6509 (90 Day Warranty)
Renewed
Brussels to Antwerp, Ghent to Liège – We've Got Belgium Covered
9-Slot
Expandable
10GbE
Compatible
Fast Failover
2-3 Seconds
Redundant
Power Supply
61,361 Hour
MTBF
55 lb
Weight
Niet op voorraad
Order in the next
to be delivered on
Thursday, Jul 17
--
hrs--
mins
Ask Our Experts
Call Us
888.267.9566
Pairs well with
In stock! Ships within 1-3 business days.
30 days Return
Limited warranty: 90 Day
Key Features
- 🔌 9 expansion slots with 8 payload slots for maximum flexibility
- ⚡ Redundant power supplies (1000W-4000W AC/DC options)
- ⚙️ Fast 1-3 second supervisor engine failover capability
- 🔄 Field-upgradeable fan trays for easy maintenance
- 💪 Supports all Catalyst 6500 modules including Supervisor 1, 2, 720
- 🌐 Compatible with 10 Gigabit, Gigabit, and Fast Ethernet modules
- 🛡️ Supports security features (firewall, IDS, IPSec/VPN)
- ⏰ 61,361 hours MTBF for high reliability
- 📊 Network analysis and SSL acceleration capabilities
- 🔊 Quiet operation with 49.8 to 53.6 dBa noise levels
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for international
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
Cisco Systems, Inc
Manufacturer Part Number
WS-C6509
Brand Name
Cisco
Product Line
Catalyst
Product Series
6500
Product Model
6509
Product Name
Catalyst 6509 Ethernet Switch
Product Type
Ethernet Switch
I/O Expansions
Total Number of Expansion Slots
9.0
Reliability
MTBF
61361 Hour
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Physical Characteristics
Height
25.5''
Width
17.3''
Depth
18.4''
Weight (Approximate)
55 lb
Miscellaneous
Additional Information
Item Included:
- Catalyst 6000 Blank Line Card Slot Cover (WS-X6K-SLOT-CVR)
- PKG,PWR SPLY INSERT,CAT 5500 (5500-PS-INSERT)
Supports all Catalyst 6500 modules, including all: - Supervisor engines:
- Supervisor 1, 2, 720 - Switch fabric modules
- Fast Ethernet modules
- Gigabit Ethernet modules
- 10 Gigabit Ethernet modules
- Voice modules
- Flex Wan Modules
- ATM modules
- Multi Gigabit services modules (content services ,firewall, intrusion detection, IPSec/VPN, network analysis, and SSL acceleration)
- Airflow: 200 lfm through system fan assembly
- Noise levels: 49.8 to 53.6 dBa
- Weight (Chassis fully configured with 1 supervisor engine, 8 switching modules, and 2 power supplies): 135 lb (61.2 kg)
- Chassis depth including cable guide is 21.64 in. (55.0 cm)
- Provides maximum uptime with redundancy and rapid 2-3 second failover across supervisor engine
Certifications & Standards
Safety:
- UL 1950
- EN 60950
- CSA-C22.2 no. 950
- IEC 60950
- AS/NZA 3260
- 21 CFR 1040
- EN 60825-1
- IEC 60825-1
- TS 001
EMC: - FCC (CFR 47, Part 15) Class A
- VCCI
- CE Marking
- EN 55022
- EN 55024
- CISPR 22
- AS/NZS 3548
- NEBS Level 3 (GR-1089-CORE, GR-63-CORE)
- ETSI ETS-300386-2 IEEE Compliance:
- 802.1d Bridging
- 802.1p, q VLAN tagging
- 802.1s Per-VLAN Group Spanning Tree Protocol
- 802.1w Rapid Spanning Tree Protocol
- 802.1x
- 802.3 10BASE-T, 10BASE-FL
- 802.3ad Link aggregation
- 802.3ab 1000BASE-T
- 802.3ae 10 Gigabit Ethernet
- 802.3u 100BASE-TX, 100BASE-FX
- 802.3x Flow control
- 802.3z 1000BASE-SX, 1000BASE-LX
RFC Compliance: - ATM:
- 1483, 2584 - BGP4:
- 1269 , 1745 , 1771 , 1965 , 1966 , 1997, 2385, 2439, 2796, 2842 - General routing protocols:
- 768, 783, 791, 792, 793, 826, 854, 894, 903, 906, 951, 1542, 1027, 1122, 1256, 1519, 1541, 1591, 1619, 1662, 1812, 2131, 2338 - IP multicast:
- 1112, 1122, 2236, 2283, 2362 - Intermediate system to Intermediate system (IS-IS):
- 1195, 1377, 2763, 2966 - LSP tunnels:
- 2211, 2702 - MPLS:
- 2547, 2961, 3031, 3032, 3036, - OSPF:
- 1583, 1587, 1745, 1765, 1850, 1997, 2154, 2178, 2328, 2370, 2385, 2439, 2842, 2918 - RIP:
- 1058, 1723, 2453 - Miscellaneous protocols:
- 1866, 2030, 2068 - Denial of service (DoS) protection:
- 2267 - Network management:
- 782, 783, 854, 951, 1155, 1156, 1157, 1212, 1213, 1215, 1256, 1285, 1354, 1493, 1516, 1573, 1643, 1650, 1657, 1724, 1757, 1850, 1901, 1907, 1908, 2021, 2037, 2096, 2233, 2613, 2668, 2787, 2925, 1492, 2138, 2668, 2787, 2925 - Security:
- 1492, 2138
Warranty
Limited Warranty
90 Day
Included in the Box
Catalyst 6509 Switch
Slot Cover
Power Supply Insert
FAQs
What are the key features of the Cisco Catalyst 6509 Ethernet Switch?
The Cisco Catalyst 6509 is a high-performance 9-slot Ethernet switch featuring redundant power supply options (1000W-4000W AC/DC), fast 1-3 second failover capability, and support for multiple modules. It offers 8 payload slots when using a single supervisor engine, supports both Gigabit and 10GbE connectivity, and includes field-upgradable fan trays. The switch is compatible with all Catalyst 6500 modules including supervisor engines, switch fabric modules, Fast Ethernet, Gigabit Ethernet, and various service modules.
What are the physical dimensions and weight of the Catalyst 6509?
The Cisco Catalyst 6509 measures 25.5 inches in height, 17.3 inches in width, and 18.4 inches in depth (21.64 inches with cable guide). The base chassis weighs approximately 55 lbs, but when fully configured with 1 supervisor engine, 8 switching modules, and 2 power supplies, it can weigh up to 135 lbs (61.2 kg).
What types of modules and interfaces does the Catalyst 6509 support?
The Catalyst 6509 supports a comprehensive range of modules including: Supervisor engines (1, 2, and 720), switch fabric modules, Fast Ethernet modules, Gigabit Ethernet modules, 10 Gigabit Ethernet modules, voice modules, Flex WAN Modules, ATM modules, and multi-gigabit services modules. The services modules support content services, firewall, intrusion detection, IPSec/VPN, network analysis, and SSL acceleration.
What power supply options are available for the Cisco Catalyst 6509?
The Catalyst 6509 offers flexible power supply options with support for redundant power supplies. Available options range from 1000W AC or DC up to 4000W AC power supplies. The redundant power supply configuration ensures continuous operation and enhanced reliability for critical network deployments.
What are the reliability features of the Cisco Catalyst 6509?
The Catalyst 6509 offers several reliability features including redundant supervisor engine configurations with fast 1-3 second failover capability, redundant power supply options, and field-upgradable fan trays for easy maintenance. The switch has an MTBF (Mean Time Between Failures) of 61,361 hours and maintains an airflow of 200 lfm through the system fan assembly for optimal cooling.
