UVC-AI-DSLR
$4,268.00
유비쿼티 (UVCAIDSLR) 기타 장치 (UVC-AI-DSLR)
Brand New
Central to North, South to East & West – We've Got Singapore Covered
4K Resolution
10MP CMOS
f/1.2 Lens
Fixed Focus
AI Detection
Human Vehicle
IPX5 Rated
Weatherproof
Gigabit PoE+
Ethernet
30fps
4K Recording
품절
Ask Our Experts
Call Us
888.267.9566
Pairs well with
In stock! Ships within 1-3 business days.
30 days Return
1-Year Warranty
Key Features
- 📸 10 Megapixel CMOS sensor with 4/3" size for professional-grade imaging
- 🎥 4K UHD recording (3840 x 2160) at 30 fps with H.264 and MJPEG support
- 🔭 Premium f/1.2 aperture with 17mm fixed M43 mount lens
- 🌐 Gigabit Ethernet connectivity with PoE/PoE+ support
- 🤖 Advanced AI features: Human Detection, Vehicle Detection, Motion Detection
- 🌡️ Weather-proof design (IPX5) with -4°F to 104°F operating range
- 🎯 52° horizontal, 39° vertical, 65° diagonal field of view
- 🔌 Multiple mounting options: Wall, Ceiling, Pole, and Tripod compatible
- 🔊 Noise detection and reduction features (2D/3D DNR)
- 💾 Memory card storage support for local recording

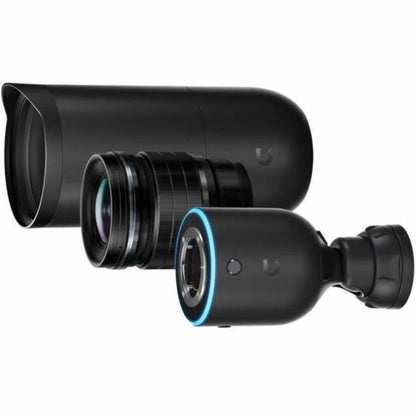

Advanced AI-Powered Surveillance with DSLR-Quality Imaging
The UVC-AI-DSLR camera combines professional-grade optics with intelligent surveillance capabilities. The modular design features a high-performance 4/3" CMOS sensor and M43 mount lens system, delivering exceptional image quality in any lighting condition. The weatherproof housing ensures reliable operation in outdoor environments while maintaining the aesthetic sophistication expected in professional installations.
Technical Specifications
- 10MP 4/3" CMOS sensor for superior light sensitivity
- f/1.2 maximum aperture for exceptional low-light performance
- Weather-resistant IPX5 rated construction
Applications
- Enterprise perimeter security monitoring
- High-end retail surveillance
- Critical infrastructure protection
Streamlined Design for Professional Integration
The UVC-AI-DSLR features a thoughtfully engineered form factor that combines functionality with aesthetics. The sleek cylindrical housing incorporates advanced cooling systems and weather sealing while maintaining a professional appearance suitable for any installation environment.
Technical Specifications
- Compact 3.1" x 6" form factor
- Multiple mounting options for versatile installation
- Operating temperature range from -4°F to 104°F
Applications
- Corporate facility integration
- Architectural surveillance solutions
- Weather-exposed monitoring locations
Complete Surveillance System Integration
The UVC-AI-DSLR seamlessly integrates into comprehensive security ecosystems. From video recording to live monitoring, every component works in harmony to deliver a complete surveillance solution. The system architecture enables easy scaling and management of multiple camera units.
Technical Specifications
- UniFi Protect integration ready
- Multi-camera system support
- Centralized management capability
Applications
- Campus-wide security deployment
- Multi-site surveillance management
- Integrated security operations
Flexible Installation Architecture
The UVC-AI-DSLR's versatile mounting options and networking capabilities enable deployment in diverse environments. The system's design allows for seamless integration with existing infrastructure while maintaining optimal performance and reliability.
Technical Specifications
- Multiple mounting configurations
- PoE-powered installation
- Weather-resistant deployment options
Applications
- Outdoor perimeter security
- Indoor surveillance systems
- Multi-location monitoring
Component-Level Engineering Excellence
Each component of the UVC-AI-DSLR is precisely engineered for optimal performance and reliability. The modular design allows for easy maintenance and upgrades while ensuring consistent operation in demanding environments.
Technical Specifications
- Professional-grade components
- Modular assembly design
- Easy maintenance access
Applications
- Long-term deployment scenarios
- Professional security installations
- Mission-critical monitoring
Durable Professional Housing Design
The UVC-AI-DSLR's robust housing provides comprehensive protection for internal components while maintaining aesthetic appeal. The weather-resistant construction ensures reliable operation in various environmental conditions.
Technical Specifications
- IPX5 weather resistance
- Thermal management design
- Impact-resistant construction
Applications
- Outdoor security installations
- All-weather surveillance
- Industrial monitoring applications
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for international
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
Ubiquiti Inc.
Manufacturer Part Number
UVCAIDSLR
Brand Name
Ubiquiti
Product Model
UVC-AI-DSLR
Product Name
UVC-AI-DSLR Network Camera
Product Type
Network Camera
Technical Information
Recording Formats
4K
HD Recording
Yes
Display & Graphics
Image Sensor Type
CMOS
Image Sensor Size
4/3''
Color Supported
Color
Field of View
52° (H), 39° (V), 65° (D)
Effective Camera Resolution
10 Megapixel
Video
Video Formats
MJPEG
H.264
Maximum Video Resolution
3840 x 2160
Maximum Frame Rate
30 fps
Lens
Lens Type
Fixed
Maximum Focal Length
17 mm
Lens Included
Yes
Lens Mount Type
M43
Maximum Aperture
f/1.2
Network & Communication
Connectivity Technology
Wired
Ethernet Technology
Gigabit Ethernet
Remote Management
Yes
Storage
Storage Type
Memory Card
Interfaces/Ports
Network (RJ-45)
Yes
Power Description
Input Voltage
57 V DC
37 V DC
Power Source Type
DC
PoE
PoE+
Physical Characteristics
Mount Type
Pole Mount
Tripod Mount
Ceiling Mount
Wall Mount
Durability
Weather Proof
Height
3.1''
Width
3.1''
Depth
6''
Diameter
3.1''
Weight (Approximate)
1.46 lb
Environmental Conditions
Minimum Operating Temperature
-4°F (-20°C)
Maximum Operating Temperature
104°F (40°C)
Operating Humidity
90%
Miscellaneous
Features
Noise Detection
Microphone In
Privacy Masking
Motion Detection
Noise Reduction
3D Digital Noise Reduction
2D Noise Reduction
White Balance
Vehicle Detection
Human Detection
Indoor/Outdoor
Indoor/Outdoor
Ingress Protection Rating
IPX5
Included in the Box
Network Camera
Mounting Hardware
Quick Guide
Similar Products
12MP
CMOS Sensor
360°
Coverage
30fps
Frame Rate
IP66
Outdoor Rated
H.264
Video Format
f/2.8
Aperture
공급업체:Hikvision
8MP 4K
Ultra HD
ColorVu Pro
24/7 Color
IP67 Rated
Weatherproof
Built-in Mic
Audio Recording
Motion Detection
Smart Alerts
Night Vision
Infrared
구하다 29%
공급업체:Lumens

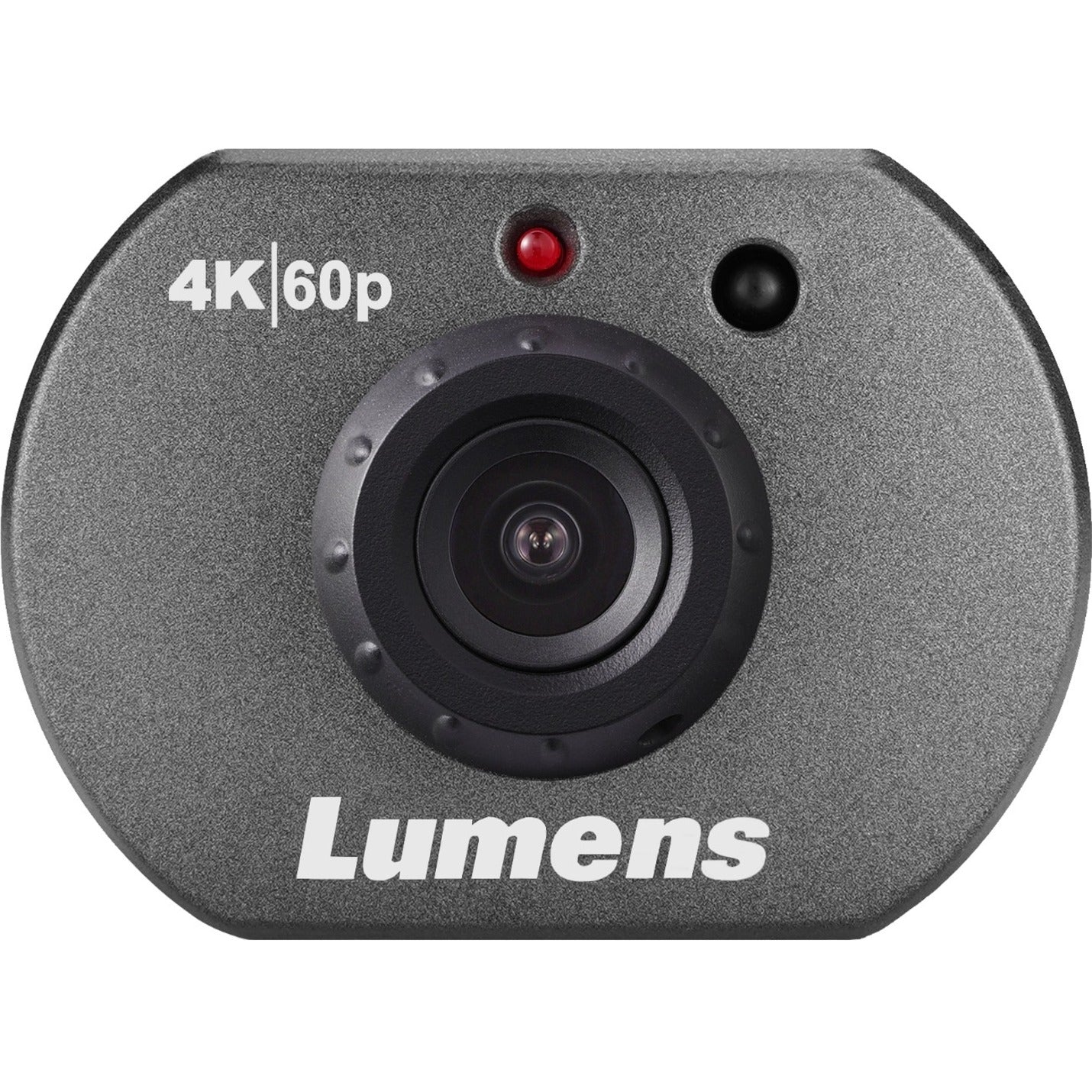

Lumens VC-BC301P 4K Network Camera, 9.2 Megapixel, 102° Wide Viewing Angle, 60fps,...
판매 가격$1,588.00정가
$2,242.00
4K 60fps
Ultra HD
9.2MP
High Resolution
102° View
Wide Angle
PoE Ready
Single Cable
12.32oz
Lightweight
f/1.6
Low Light
FAQs
What are the key features and capabilities of the Ubiquiti UVC-AI-DSLR network camera?
The Ubiquiti UVC-AI-DSLR is a professional-grade network camera featuring 4K recording capabilities with a 10 Megapixel CMOS sensor. It offers advanced AI features including human detection, vehicle detection, and motion detection. The camera supports both H.264 and MJPEG video formats with maximum resolution of 3840 x 2160 at 30fps. It features a fixed M43 mount lens with f/1.2 maximum aperture and provides a field of view of 52° horizontal, 39° vertical, and 65° diagonal.
What are the mounting options and environmental specifications of the UVC-AI-DSLR?
The UVC-AI-DSLR offers versatile mounting options including pole, tripod, ceiling, and wall mounting capabilities. It's designed for both indoor and outdoor use with an IPX5 weather-proof rating. The camera operates in temperatures from -4°F (-20°C) to 104°F (40°C) with up to 90% operating humidity. Its compact dimensions are 3.1" x 3.1" x 6" with a weight of 1.46 lb, making it suitable for various installation scenarios.
How does the UVC-AI-DSLR connect to networks and what power options are available?
The camera connects via wired Gigabit Ethernet and includes an RJ-45 port for network connectivity. For power, it supports multiple options including PoE (Power over Ethernet), PoE+, and DC power with input voltage options of 37V DC or 57V DC. The camera supports remote management capabilities, making it easy to control and monitor from a central location.
What are the imaging specifications and lens details of the UVC-AI-DSLR?
The UVC-AI-DSLR features a 4/3" CMOS image sensor with 10 Megapixel effective resolution. It comes with a fixed lens with M43 mount type and 17mm maximum focal length, featuring an impressive f/1.2 maximum aperture. The camera supports color imaging and provides a field of view of 52° horizontal, 39° vertical, and 65° diagonal, ideal for detailed surveillance coverage.
What AI and detection features does the UVC-AI-DSLR include?
The UVC-AI-DSLR includes multiple AI-powered detection features such as human detection, vehicle detection, and motion detection. It also features noise detection capabilities and privacy masking. The camera incorporates advanced noise reduction technology including 2D and 3D digital noise reduction, along with white balance adjustment for optimal image quality in various conditions.
Compare Similar Products
| Specification |
유비쿼티 (UVCAIDSLR) 기타 장치 (UVC-AI-DSLR)
|

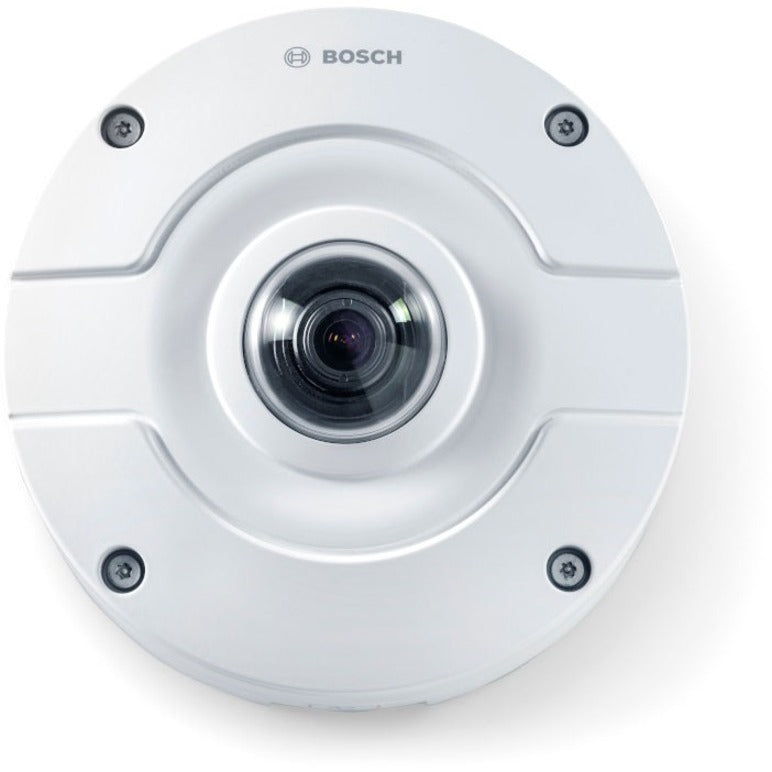

보쉬 NDS-6004-F360E FLEXIDOME IP 고정돔 12MP 360° IP...
|
