Product details

General Information
Manufacturer

Thermaltake Technology Co., Ltd

Manufacturer Part Number

AC-069-OO1NAN-A1

Brand Name

Thermaltake

Product Line

Dr. Power III

Product Name

Dr. Power III ATX Power Supply Tester

Product Type

ATX Power Supply Tester

Display & Graphics
Display Screen

Yes

Display Screen Type

LCD

Interfaces/Ports
Connectors

ATX12V
16-pin (12+4)
24-pin
Peripheral
PCI-E 6/8-pin
CPU 4/8-pin
SATA

Physical Characteristics
Height

1''

Width

2.9''

Miscellaneous
Compatibility

<p>Supports every ATX power supply available today up to ATX12V v3.1</p>

Warranty
Limited Warranty

3 Year

Included in the Box

  • icon_list|psu tester|PSU Tester Main unit icon

    PSU Tester

FAQs

What power supply standards does the Thermaltake Dr. Power III support?
The Thermaltake Dr. Power III supports all contemporary ATX power supplies up to ATX12V v3.1 standard. It's equipped with comprehensive connector support including ATX12V, 24-pin, PCIe 12+4pin, CPU 4/8-pin, SATA, and peripheral connectors, making it compatible with virtually every modern ATX power supply available in the market.
How does the voltage monitoring display work on the Dr. Power III?

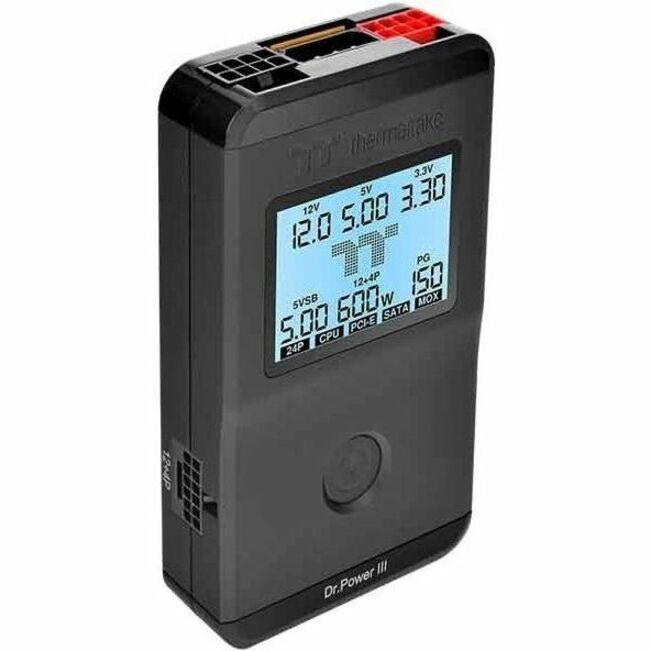

The Dr. Power III features a real-time LCD display that shows output voltage readings for +12V, +5V, +3.3V, and +5Vsb rails. The display provides instant feedback with clear, easy-to-read measurements. When operating normally, the LCD backlight remains white, but if any fault is detected, the backlight turns red and emits a "beep" sound to alert the user.
What PCIe power capabilities can the Dr. Power III test?
The Dr. Power III can detect SENSE0/SENSE1 sideband signals through its PCIe 12+4pin connector testing capability. It can distinguish between power levels of 150W, 300W, 450W, and 600W, making it fully compatible with PCIe Gen 5.1 graphics cards. This ensures comprehensive testing for the latest high-performance GPU power requirements.
What testing modes are available on the Dr. Power III?
The Dr. Power III offers both manual and automatic testing modes, providing users with flexibility in how they want to conduct their power supply diagnostics. These options allow users to either run quick automated tests or perform detailed manual inspections of specific power supply functions according to their preferences.
What types of issues can the Dr. Power III diagnostic system detect?
The built-in diagnostic system of the Dr. Power III can detect multiple power supply issues including low-voltage conditions, high-voltage conditions, no voltage output, and PG (Power Good) signal problems. The system provides visual alerts through the LCD backlight changing to red and audible warnings through beep sounds when any faults are detected.
