Complete package contents of Black Box KVX Series HDMI KVM Extender including transmitter, receiver, cables, and power supplies

Complete KVM Extension Solution with All Essential Components

The Black Box KVX Series HDMI KVM Extender comes as a comprehensive package with everything needed for immediate deployment. The kit includes the transmitter and receiver units, power supplies with multiple plug types, HDMI cables, audio cables, and mounting hardware. This turnkey solution ensures seamless integration into your existing infrastructure without requiring additional purchases.

Technical Specifications

  • Dual-head HDMI KVM extender with 4K resolution support
  • Complete accessory package with power supplies and cables
  • Mounting hardware included for flexible installation

Applications

  • Server room management with remote workstation setup
  • Control center operations requiring extended reach
  • Industrial environments needing secure equipment separation
Front panel view of Black Box KVM extender transmitter and receiver units showing LED indicators and ports

Streamlined Front Panel Interface for Easy Operation

The front panel design prioritizes operational clarity with clear status indicators for power and link connectivity. Each unit features dual sets of LED indicators that provide instant visual feedback on connection status. The minimalist interface reduces complexity while maintaining full functionality for professional environments.

Technical Specifications

  • Dual LED indicators for power and link status
  • Audio and USB peripheral ports on front panel
  • Clear labeling for intuitive operation

Applications

  • Quick status monitoring in data centers
  • Easy troubleshooting of connection issues
  • Efficient system management in control rooms
Side view of Black Box KVM extender units showing compact form factor

Compact Design for Space-Efficient Installation

The KVX Series extender units feature a space-conscious form factor that maximizes installation flexibility. The low-profile design allows for easy integration into existing rack systems or desktop setups. Despite their compact size, these units deliver full KVM functionality with dual-head 4K video support.

Technical Specifications

  • Space-efficient 1U height design
  • Durable metal housing construction
  • Integrated cooling without fans

Applications

  • Dense rack installations in server rooms
  • Desktop deployment in limited spaces
  • Multi-unit installations in control centers

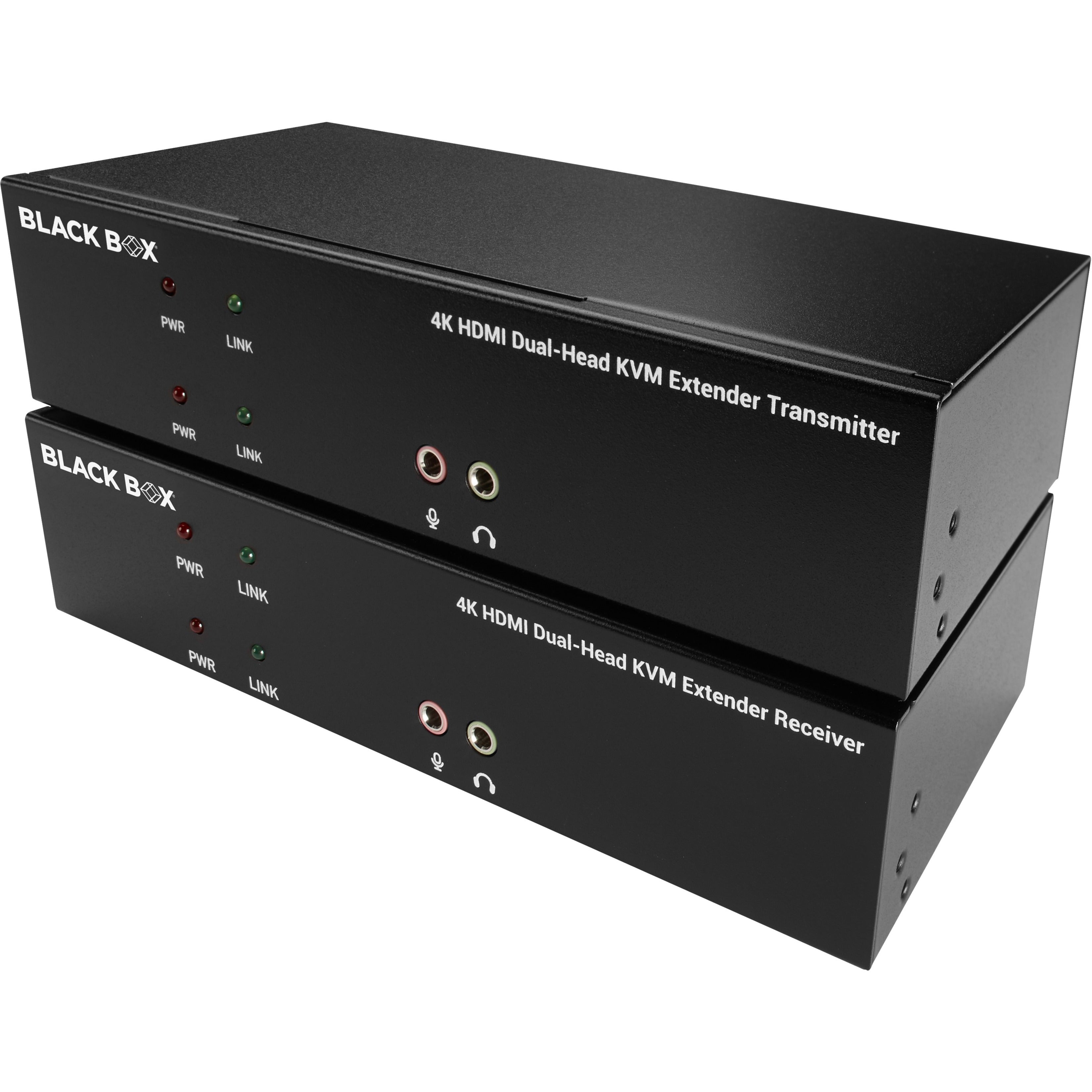

Angled view of Black Box KVM extender units showing professional build quality

Advanced Dual-Head KVM Extension Technology

This professional-grade KVM solution leverages advanced technology to support dual-head 4K video extension. The robust design ensures reliable performance in demanding environments while maintaining signal integrity across extended distances. The system provides enterprise-level functionality in a refined package.

Technical Specifications

  • 4K UHD resolution support
  • Dual-head video capability
  • Enterprise-grade build quality

Applications

  • Multi-display control room operations
  • High-resolution medical imaging stations
  • Financial trading desk setups
Rear panel view of Black Box KVM extender showing all available ports and connections

Comprehensive Connectivity Options

The rear panel provides extensive connectivity options including dual fiber ports, USB, RS-232, and multiple HDMI connections. This robust I/O configuration supports complex installations while maintaining signal quality. The thoughtful port layout facilitates clean cable management and simplified maintenance.

Technical Specifications

  • Dual fiber optic ports for redundancy
  • Multiple HDMI inputs and outputs
  • USB and RS-232 serial connectivity

Applications

  • Complex multi-system integration
  • Secure fiber optic installations
  • Extended distance control applications

Product details

General Information
Manufacturer

Black Box Corporation

Manufacturer Part Number

KVXLCHF-200

Brand Name

Black Box

Product Series

KVX

Product Model

KVXLCHF-200

Product Name

KVX Series Dual-Head HDMI KVM Fiber Extenders (KVXLCHF-200)

Product Type

KVM Console/Extender

Technical Information
Connectivity Technology

Wired

Number of Computers Supported

1

Number of Local Users Supported

1

Maximum Operating Distance

98425.20 ft

Device Type

KVM Extender

Video
Graphic Mode

4K

Maximum Video Resolution

3840 x 2160

Interfaces/Ports
USB

Yes

HDMI

Yes

Number of HDMI Ports

6

Number of USB Ports

5

Power Description
Input Voltage

5 V DC

Physical Characteristics
Transmitter Height

1.10

Transmitter Width

7.15

Transmitter Depth

3.25

Receiver Height

1.10

Receiver Width

7.15

Receiver Depth

3.25

Transmitter Weight (Approximate)

13.12 oz

Receiver Weight (Approximate)

13.28 oz

Miscellaneous
Package Contents

  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU,and UK plug types)
  • 2 x HDMI Cables 1.2M (4 ft.)
  • 1 x 3.5MM Audio Cable 1.8M (6 ft.)
  • 1 x USB-B TO USB-A Cable 1.8M (6 ft.)
  • 2 x Deskmount Kits With Screws

            Country of Origin

            Taiwan

            Warranty
            Limited Warranty

            2 Year

            Included in the Box

            • icon_list|transmitter|IR Transmitter icon

              Transmitter

            • icon_list|Receiver|USB Receiver icon

              Receiver

            • icon_list|power supplies|2 PSU Power supplies icon

              Power Supplies

            • icon_list|hdmi cables|HDMI Cables 5-pack cables icon

              HDMI Cables

            • icon_list|audio cable|Audio Cable Main product icon

              Audio Cable

            • icon_list|usb cable|6ft USB cable icon

              USB Cable

            • icon_list|deskmount kits|Deskmount Kits Mounting hardware icon

              Deskmount Kits

            FAQs

            What is the maximum video resolution supported by the Black Box KVXLCHF-200 KVM Extender?
            The Black Box KVXLCHF-200 KVM Extender supports 4K video resolution up to 3840 x 2160 pixels. This high-resolution capability makes it ideal for applications requiring crystal-clear video quality, such as control centers, medical facilities, and professional workstations.
            What is the maximum operating distance of the KVXLCHF-200?
            The KVXLCHF-200 can operate at distances of up to 98,425.20 feet (30 kilometers), depending on the SFP used, fiber type, and fiber bandwidth. This extensive range makes it perfect for large facilities, industrial warehouses, and distributed control centers.
            What connections and ports are available on the KVXLCHF-200?
            The KVXLCHF-200 features 6 HDMI ports and 5 USB ports in total. It supports both HDMI and USB connectivity, allowing for comprehensive KVM control and dual-head display capabilities. The system includes both local and remote access points for flexible setup options.
            What items are included in the package?
            The package includes: 1 Transmitter unit, 1 Receiver unit, 2 power supplies (5V, 2A) with US, EU, and UK plug types, 2 HDMI cables (1.2M/4 ft.), 1 3.5MM audio cable (1.8M/6 ft.), 1 USB-B to USB-A cable (1.8M/6 ft.), and 2 deskmount kits with screws. This complete package ensures you have everything needed for immediate setup.
            What are the physical dimensions of the transmitter and receiver units?
            Both the transmitter and receiver units have identical dimensions: 1.10" height x 7.15" width x 3.25" depth. The transmitter weighs 13.12 oz, while the receiver weighs slightly more at 13.28 oz. These compact dimensions make them easy to mount and position in various environments.
