B560M-HDV

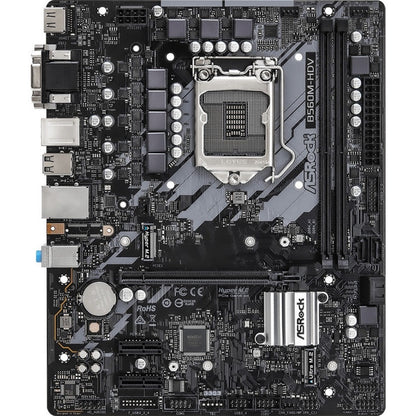

ASRock B560M-HDV Desktop Motherboard, Micro ATX, Intel B560 Chipset, LGA-1200 Socket, DDR4, 64GB RAM, 5000MHz Memory Speed, 7.1 Audio Channels, HDMI, DisplayPort, USB 3.2 Gen 1, Gigabit Ethernet
Oslo to Bergen, Trondheim to Stavanger – We've Got Norway Covered
Pairs well with
In stock! Ships within 1-3 business days.
30 days Return
1-Year Warranty
Key Features
- Supports up to 64GB of DDR4 RAM for smooth multitasking and efficient performance.
- Features Intel Optane Memory Ready technology for faster data access and improved system responsiveness.
- Offers a total of 6 USB ports, including 4 USB 3.2 Gen 1 ports, for easy connectivity and fast data transfer.
- Comes with 2 M.2 interfaces and 4 SATA interfaces for flexible storage options.
- Supports high-speed memory modules with speeds of up to 5000 MHz for enhanced system performance.
- Features a Micro ATX form factor, making it suitable for compact desktop builds.
- Equipped with VGA, HDMI, and DisplayPort outputs for versatile display connectivity.
- Supports 7.1 audio channels for immersive sound quality.
- Comes with Gigabit Ethernet for fast and reliable network connectivity.
- Compatible with a wide range of Intel processors, including Core i9, Core i7, Core i5, Core i3, Pentium Gold, and Celeron.
ASRock
B560M-HDV
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 5000MHz (OC)
- 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
1 x Ultra M.2 (PCIe Gen3 x4 & SATA3) - 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
6 x USB 2.0 (2 x Rear, 4 x Front) - Intel® Gigabit LAN
PREMIUM 50A POWER CHOKE
ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.
-
Refund Policy
Standard Return Policy:
We offer a hassle-free 30-day returns policy for international
orders, excluding non-refundable items. Refund or Replacement within 30
days of the delivery date. All products that fall under the Standard
Return Policy qualify for our 30-Day Hassle-Free Returns.Replacement Only Return Policy:
Replacement within 30 days of the delivery date.
Manufacturer Only Return Policy:
Covered by the manufacturer's warranty. Please refer to the terms and
conditions for the manufacturer's warranty or contact the manufacturer.
Product details
General Information
Manufacturer
ASRock, Inc
Manufacturer Part Number
B560M-HDV
Brand Name
ASRock
Product Model
B560M-HDV
Product Name
B560M-HDV Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
B560
Total Processor Supported
1
Processor Socket
Socket LGA-1200
Processor Supported
Celeron
Core i3
Core i9
Core i7
Core i5
Pentium Gold
Memory
Number of Memory Slots
2
Memory Form Factor
UDIMM
DIMM
Maximum Memory Supported
64 GB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
5000 MHz
4600 MHz
Intel Optane Memory Ready
Yes
I/O Controller
Controller Type
Serial ATA/600
Intel RST
Yes
Video
Onboard Video
CPU Dependent Video
Audio
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.2 Gen 1 Ports
4
VGA
Yes
HDMI
Yes
DisplayPort
Yes
Number of Network (RJ-45) Ports
1
Onboard Interfaces
Number of SATA Interfaces
4
Number of M.2 Interfaces
2
Total Number of Onboard USB Ports
6
Number of Onboard USB 2.0 Ports
4
Number of Onboard USB 3.2 Ports
2
Physical Characteristics
Form Factor
Micro ATX
Width
9.6
Depth
7.8
Miscellaneous
Brand Compatibility
Intel
