LevelOne


POS-4000

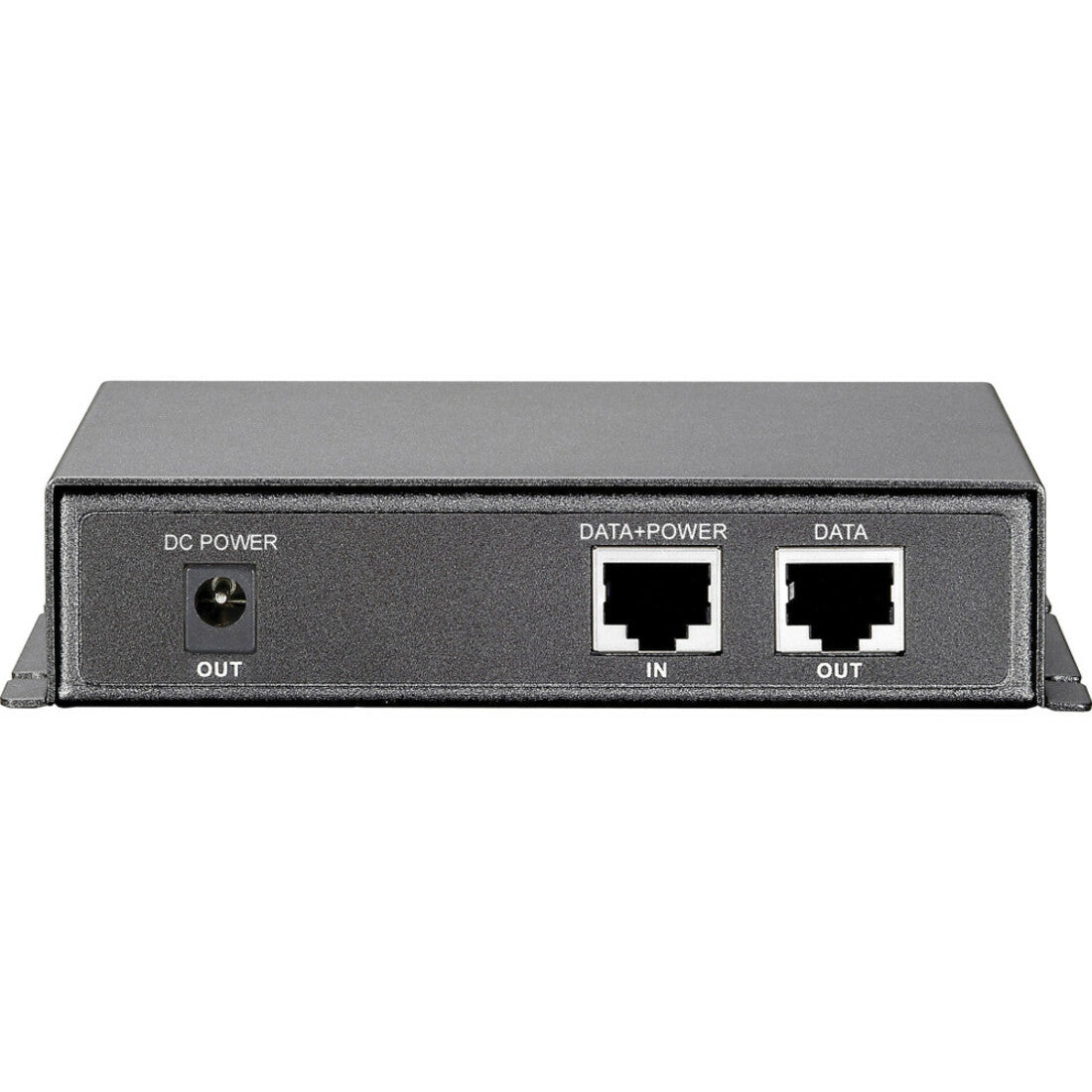

The LevelOne POS-4000 is a PoE Splitter working with the POI-4000, FSW-0513 and POH-1260 high power PoE injectors for enabling PoE functionality to network device that requires more power. The POS-4000 is capable of supporting maximum power output 12VDC/2.5A for device that requires power up to 30W. Internal current limit, short-circuit and overload protection are implemented to maintain safety of connected device. Furthermore, using with the POR-0100 PoE repeater can extend the PoE connecting distance beyond additional 100 meters.

Product details

General Information
Manufacturer

CP Technologies

Manufacturer Part Number

POS-4000

Brand Name

LevelOne

Product Model

POS-4000

Product Name

Fast Ethernet High Power PoE Splitter, 12V DC Output

Product Type

PoE Splitter

Power Description
Maximum Output Voltage

12 V DC

Maximum Input Current

2.50 A

Maximum Output Power

30 W

Interfaces/Ports
Input Ports

1 x 10/100Base-TX

Output Ports

1 x 10/100Base-TX

Physical Characteristics
Height

1.1

Width

3.5

Depth

4.7

Miscellaneous
Package Contents

  • LevelOne POS-4000 High-Power Power Power over Ethernet Splitter
  • 1 x QIG
  • 1 x Output Power Jack

Compatibility

  • IP Network Cameras
  • Wireless Access Points
  • VoIP Phones

Certifications & Standards

  • IEEE 802.3af complaint

Regulations & Approvals:

  • FCC Rules Part 15
  • CE

Country of Origin

Taiwan

Warranty
Limited Warranty

1 Year
